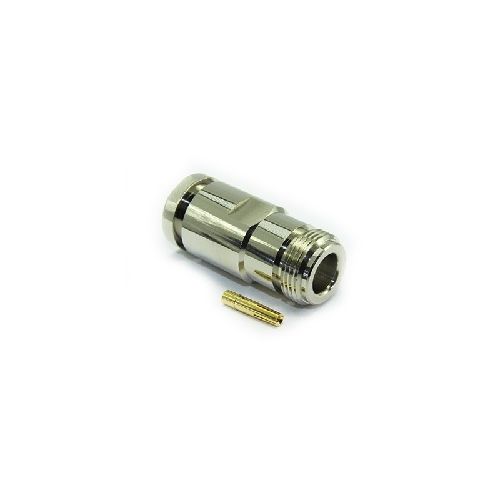

25-050-B3-AN | 25050B3AN | Solder / Top Hat Clamp Jack

N Type 50 ohm straight jack. With soldered centre contact and Top Hat clamped braid, Suitable for use with RG213 or similar cables in group AN
More Information
Complete Electronics Part No. 25050B3AN
Manufacturers Part No. 25-050-B3-AN
Male/Female: Female
Type Straight
Impedance 50 Ohm
Working Frequency Up To 11 GHz
Description

Electrical Specification

  • Impedance: 50Ohm
  • Frequency Range: Up to 11GHz
  • Dielectric Withstand Voltage 1500 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • Design Standard: IEC 61169-8
  • RoHS3 Compliant:
  • Centre Contact Termiination: Solder
  • Outer Contact Termination: Clamp
  • Mating Cycles: 500
  • Contact Retention: 27N min
  • Cable Retention: 150N min
  • Weight: 38.1g
  • Mating Force: 6.6Ncm max
  • Un-Coupling Force: 6.6Ncm max
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP67

Materials

  • Centre Contact: Phosphor Bronze
  • Outer Contact:   Brass
  • Insulator: PTFE
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Nickel
  • Pack Size 1
