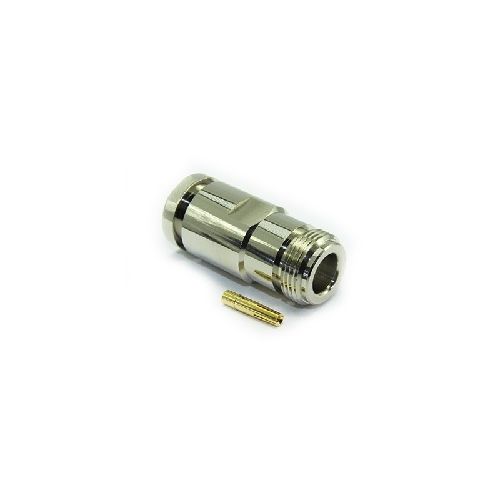

25-050-B6-AI | 25050B6AI | N Type Solder / Clamp Jack

N Type 75 ohm straight jack. With soldered centre contact and clamped braid, Suitable for use with RG59 or similar cables in group AI
More Information
Complete Electronics Part No. 25050B6AI
Manufacturers Part No. 25-050-B6-AI
Male/Female: Female
Type Straight
Impedance 75 Ohm
Working Frequency Up To 11 GHz
Description

Electrical Specification

Note : 50 and 75 Ohm versions of N Type are not compatible and permanent damage to the connector may occur if mated.

  • Impedance: 75Ohm
  • Frequency Range: Up to 11GHz
  • Dielectric Withstand Voltage 1500 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • Design Standard: IEC 61169-8
  • RoHS3 Compliant:
  • Centre Contact Termiination: Solder
  • Outer Contact Termination: Clamp
  • Mating Cycles: 500
  • Contact Retention: 27N min
  • Cable Retention: 150N min
  • Weight:
  • Mating Force: 6.6Ncm max
  • Un-Coupling Force: 6.6Ncm max
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP67

Materials

  • Centre Contact: Phosphor Bronze
  • Outer Contact:   Brass
  • Insulator: PTFE
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Nickel
  • Pack Size 1
