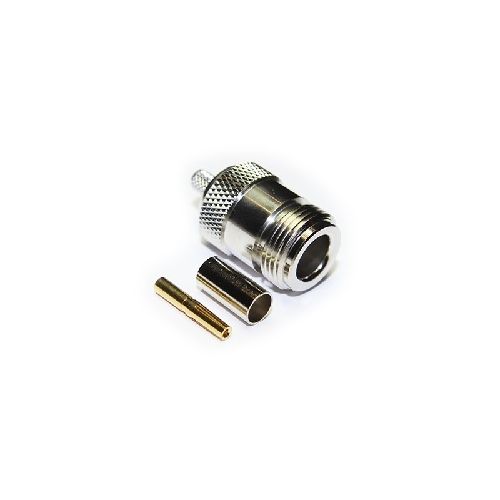

25-054-B3-AK | 25054B3AK | N Type Crimp Jack

N Type 50 ohm full crimp straight jack. With gold plated centre contact, Suitable for use with RG223 or similar cables in group AK
More Information
Complete Electronics Part No. 25054B3AK
Manufacturers Part No. 25-054-B3-AK
Male/Female: Female
Type Straight
Impedance 50 Ohm
Working Frequency Up To 11 GHz
Description

Electrical Specification

  • Impedance: 50Ohm
  • Frequency Range: Up to 11GHz
  • Dielectric Withstand Voltage 1500 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • Design Standard: IEC 61169-8
  • RoHS3 Compliant:
  • Centre Contact Termiination: Crimp
  • Outer Contact Termination: Crimp
  • Mating Cycles: 250
  • Contact Retention: 27N min
  • Cable Retention: 220N min
  • Weight: 30g
  • Mating Force: 6.6Ncm max
  • Un-Coupling Force: 6.6Ncm max
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP67

Materials

  • Centre Contact: Phosphor Bronze
  • Outer Contact:   Brass
  • Insulator: PTFE
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Nickel
  • Pack Size 1
