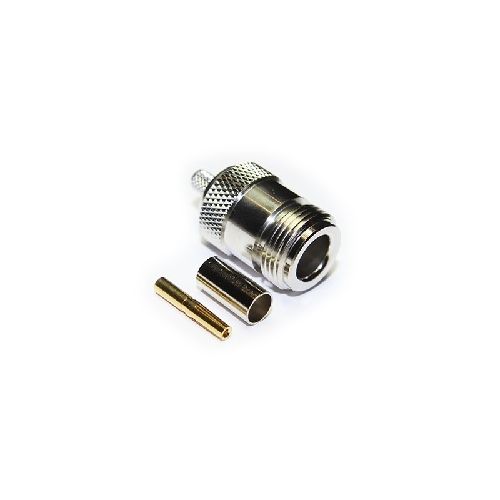

25-054-B3-DB | 25054B3DB | N Type Crimp Jack

N Type 50 ohm full crimp straight jack. With gold plated centre contact, Suitable for use with Times LMR®240 or similar cables in group DB.
More Information
Complete Electronics Part No. 25054B3DB
Manufacturers Part No. 25-054-B3-DB
Male/Female: Female
Type Straight
Impedance 50 Ohm
Working Frequency Up To 11 GHz
Description

Electrical Specification

  • Impedance: 50Ohm
  • Frequency Range: Up to 11GHz
  • Dielectric Withstand Voltage 1500 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • Design Standard: IEC 61169-8
  • RoHS3 Compliant:
  • Centre Contact Termiination: Crimp
  • Outer Contact Termination: Crimp
  • Mating Cycles: 250
  • Contact Retention: 27N min
  • Cable Retention: 150N min
  • Weight: 32.8g
  • Mating Force: 6.6Ncm max
  • Un-Coupling Force: 6.6Ncm max
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP67

Materials

  • Centre Contact: Phosphor Bronze
  • Outer Contact:   Brass
  • Insulator: PTFE
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Nickel
  • Pack Size 1
