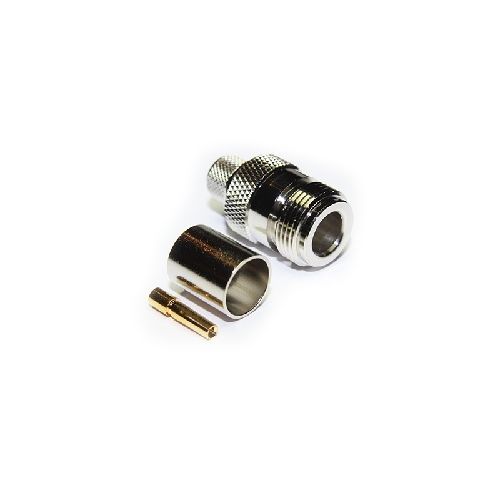

25-054-B3-DE | 25054B3DE | N Type Crimp Jack

N Type 50 ohm Solder / crimp straight jack. With gold plated centre contact, Suitable for use with Times LMR®400 or similar cables in group DE
More Information
Complete Electronics Part No 25054B3DE
Manufacturers Part No. 25-054-B3-DE
Male/Female Female
Type Straight
Impedance 50 Ohm
Working Frequency Up To 11 GHz
Description

Electrical Specification

NOTE : FOR COPPER CLAD ALUMINIUM CABLES ie LMR400 WE RECOMMEND SOLDERING CENTRE CONTACT

  • Impedance: 50Ohm
  • Frequency Range: Up to 11GHz
  • Dielectric Withstand Voltage 1500 Veff
  • Insulation Resistance 5000 M-Ohm
  • Return Loss: -17dB@6GHz

Mechanical Specification

  • Design Standard: IEC 61169-8
  • RoHS3 Compliant:
  • Centre Contact Termiination: Crimp / Solder
  • Outer Contact Termination: Crimp
  • Mating Cycles: 500
  • Contact Retention: 27N min
  • Cable Retention: 150N min
  • Weight: 32.97g
  • Mating Force: 6.6Ncm max
  • Un-Coupling Force: 6.6Ncm max
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP65

Materials

  • Centre Contact: Phosphor Bronze
  • Outer Contact:   Brass
  • Insulator: PTFE
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Nickel
  • Pack Size 1
