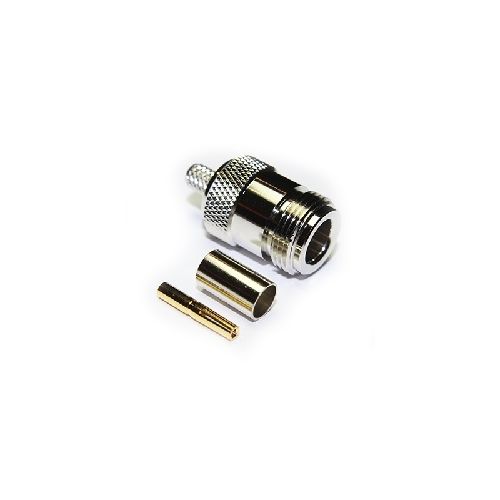

25-054-B6-AI | 25054B6AI | N Type Crimp Jack
N Type 75 ohm full crimp straight jack. With gold plated centre contact, Suitable for use with RG59 or similar cables in group AI..
| Complete Electronics Part No. | 25054B6AI |
|---|---|
| Manufacturers Part No. | 25-054-B6-AI |
| Male/Female: | Female |
| Type | Straight |
| Impedance | 75 Ohm |
| Working Frequency | Up To 11 GHz |
Description
Electrical Specification
Note : 50 and 75 Ohm versions of N Type are not compatible and permanent damage to the connector may occur if mated.
- Impedance: 75Ohm
- Frequency Range: Up to 11GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 61169-8
- RoHS3 Compliant:
- Centre Contact Termiination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 500
- Contact Retention: 27N min
- Cable Retention: 120N min
- Weight: 29.2g
- Mating Force: 6.6Ncm max
- Un-Coupling Force: 6.6Ncm max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP67
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
