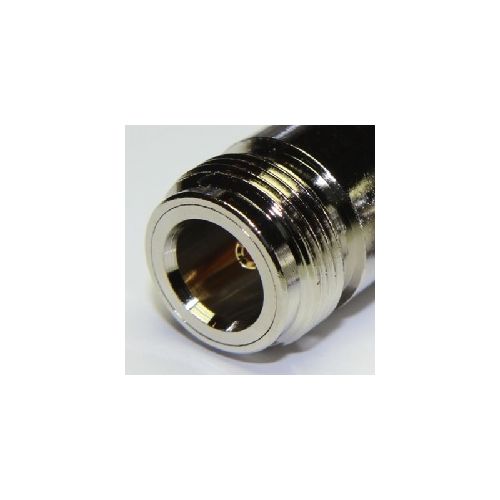

25-067-B3-DH | 25067B3DH | Easy Fit / Clamp Jack
N Type 50 ohm Easy Fit straight jack for simple termination to cable. Suitable for use with Times LMR®400 or similar cables in group DH
| Complete Electronics Part No. | 25067B3DH |
|---|---|
| Manufacturers Part No. | 25-067-B3-DH |
| Male/Female: | Female |
| Type | Straight |
| Impedance | 50 Ohm |
| Working Frequency | Up To 11 GHz |
Description
Electrical Specification
- Impedance: 50Ohm
- Frequency Range: Up to 11GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 61169-8
- RoHS3 Compliant:
- Centre Contact Termiination: Easy Fit
- Outer Contact Termination: Clamp
- Mating Cycles: 500
- Contact Retention: 27N min
- Cable Retention: 220N min
- Weight:
- Mating Force: 6.6Ncm max
- Un-Coupling Force: 6.6Ncm max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP67
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
