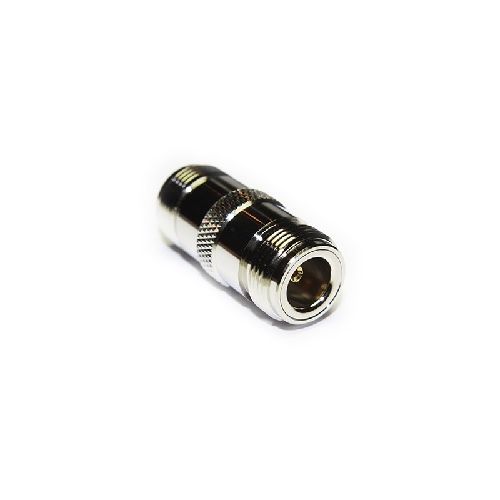

25-500-B3 | 25500B3 | N Type Straight Jack to Jack Adaptor
N Type 50 ohm straight jack to jack adaptor. This adaptor has a gold plated centre conductor and nickel plated body.
| Complete Electronics Part No. | 25500B3 |
|---|---|
| Manufacturers Part No. | 25-500-B3 |
| Male/Female: | Jack |
| Type | Straight |
| Impedance | 50 Ohm |
| Working Frequency | Up To 1 GHz |
Description
Electrical Specification
- Impedance: 50Ohm
- Frequency Range: Up to 1GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 61169-8
- RoHS3 Compliant:
- Mating Cycles: 500
- Contact Retention: 27N min
- Weight: 43.4g
- Mating Force: 6.6Ncm max
- Un-Coupling Force: 6.6Ncm max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP67
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
