25-501-1-B3 | 255011B3 | Bulkhead Jack to Jack Adaptor

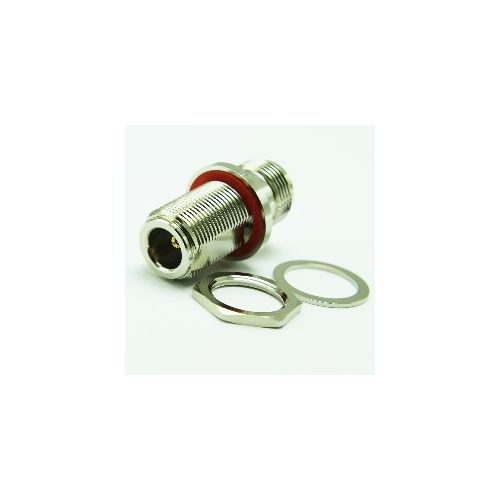

N Type 50 ohm straight jack to jack bulkhead mount adaptor. Double flat on the body for DD hole fixing. Gold plated centre conductor with nickel plated body.
More Information
Complete Electronics Part No 255011B3
Manufacturers Part No. 25-501-1-B3
Male/Female Jack
Type Panel / Bulkhead Mount
Impedance 50 Ohm
Working Frequency Up To 11 GHz
Description

Electrical Specification

  • Impedance: 50Ohm
  • Frequency Range: Up to 12GHz
  • Dielectric Withstand Voltage 1500 Veff
  • Insulation Resistance 5000 M-Ohm
  • Return Loss: -28.3dB@12GHz

Mechanical Specification

  • Design Standard: IEC 61169-8
  • RoHS3 Compliant:
  • Mating Cycles: 500
  • Contact Retention: 27N min
  • Weight: 49.3
  • Mating Force: 6.6Ncm max
  • Un-Coupling Force: 6.6Ncm max
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP67

Materials

  • Centre Contact: Phosphor Bronze
  • Outer Contact:   Brass
  • Insulator: PTFE
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Nickel
  • Pack Size 1
