25-501-B3 | 25501B3 | Bulkhead Jack to Jack Adaptor

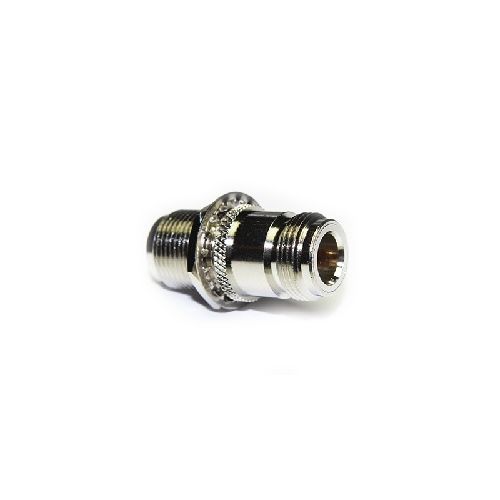

N Type 50 ohm straight jack to jack bulkhead mount adaptor. Single flat on the body for D hole fixing. Gold plated centre conductor with nickel plated body.
More Information
Complete Electronics Part No. 25501B3
Manufacturers Part No. 25-501-B3
Male/Female: Jack
Type Panel / Bulkhead Mount
Impedance 50 Ohm
Working Frequency Up To 6GHz
Description

Electrical Specification

  • Impedance: 50Ohm
  • Frequency Range: Up to 6GHz
  • Dielectric Withstand Voltage 1500 Veff
  • Insulation Resistance 5000 M-Ohm
  • Return Loss: -27.2dB@6GHz

Mechanical Specification

  • Design Standard: IEC 61169-8
  • RoHS3 Compliant:
  • Mating Cycles: 500
  • Contact Retention: 27N min
  • Weight: 43.9g
  • Mating Force: 6.6Ncm max
  • Un-Coupling Force: 6.6Ncm max
  • Operating Temperature: -30 to +70°C
  • IP Rating (Mated): IP67

Materials

  • Centre Contact: Phosphor Bronze
  • Outer Contact:   Brass
  • Insulator: Delrin
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Nickel
  • Pack Size 1
