25-520-B3 | 25520B3 | N Type Right Angle Plug to Jack

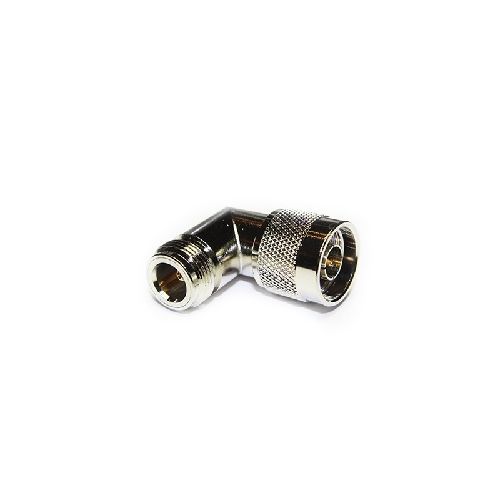

N Type 50 ohm right angle plug to jack adaptor. This adaptor has a gold plated centre contact and nickel plated body.
More Information
Complete Electronics Part No. 25520B3
Manufacturers Part No. 25-520-B3
Male/Female: Male and Female
Type Right Angled
Impedance 50 Ohm
Working Frequency Up To 1 GHz
Description

Electrical Specification

  • Impedance: 50Ohm
  • Frequency Range: Up to 1GHz
  • Dielectric Withstand Voltage 1500 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • Design Standard: IEC 61169-8
  • RoHS3 Compliant:
  • Mating Cycles: 500
  • Contact Retention: 27N min
  • Weight: 66.2g
  • Mating Force: 6.6Ncm max
  • Un-Coupling Force: 6.6Ncm max
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP67

Materials

  • Centre Contact: Phosphor Bronze
  • Outer Contact:   Brass
  • Insulator: PTFE
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Nickel
  • Pack Size 1
