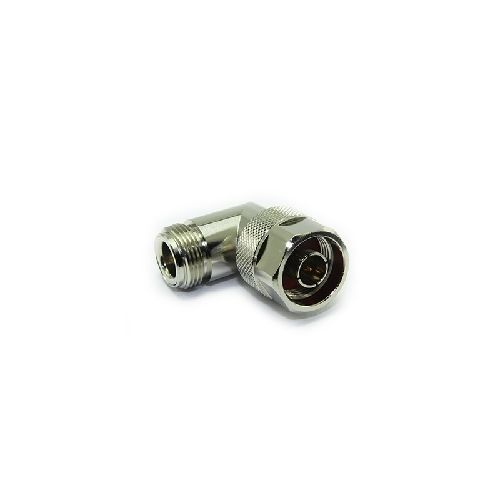

25-520-H3 | 25520H3 | N Type Right Angle Plug to Jack
N Type 50 ohm right angle plug to jack adaptor is optimised for operation up to 18GHz. The body is passivated stainless steel, centre contact is gold plated.
| Complete Electronics Part No. | 25520H3 |
|---|---|
| Manufacturers Part No. | 25-520-H3 |
| Male/Female: | Male and Female |
| Type | Right Angled |
| Impedance | 50 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 50Ohm
- Frequency Range: Up to 18GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 61169-8
- RoHS3 Compliant:
- Mating Cycles: 500
- Contact Retention: 27N min
- Weight:
- Mating Force: 6.6Ncm max
- Un-Coupling Force: 6.6Ncm max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP67
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
