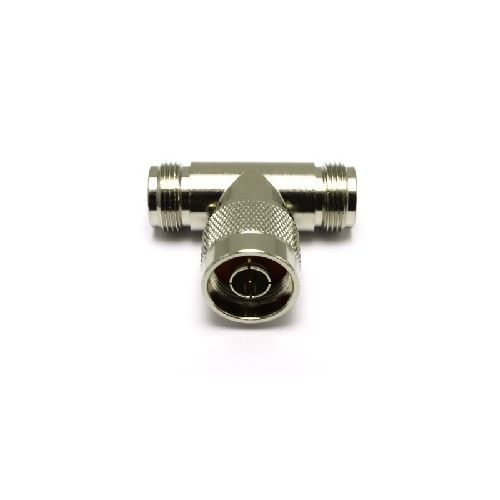

25-523-A3 | 25523A3 | N Type "T" Adaptor
N Type 50 ohm "T" adaptor. Arrangement is Jack / Plug / Jack. This adaptor has a gold plated centre contact and nickel plated body.
| Complete Electronics Part No. | 25523A3 |
|---|---|
| Manufacturers Part No. | 25-523-A3 |
| Male/Female: | Male and Female |
| Type | T Adaptor |
| Impedance | 50 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 50Ohm
- Frequency Range: Up to 11GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 61169-8
- RoHS3 Compliant:
- Mating Cycles: 500
- Contact Retention: 27N min
- Weight: 61.75g
- Mating Force: 6.6Ncm max
- Un-Coupling Force: 6.6Ncm max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP67
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
