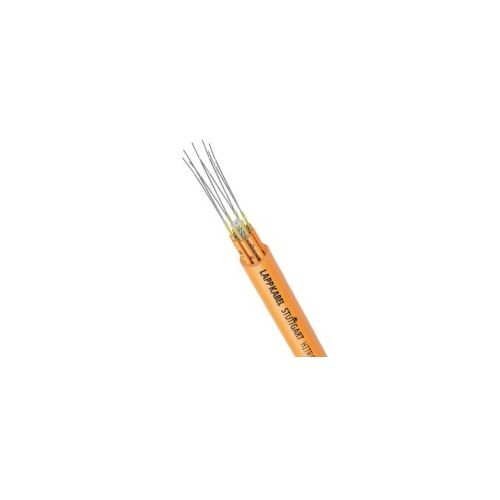

26000204 | HITRONIC HRH600 4G 50/125 OM2 | Optical Fibre Cable
Splitable Breakout Cable, Cable Type: Multimode 50 /125 OM 2, Number of fibres: 4, Cable Outer Diameter: 7mm, Heat Resistant
| Complete Electronics Part No. | 26000204 |
|---|---|
| Manufacturers Part No. | 26000204 |
| Series: | Hitronic HRH Cable |
| Number of Conductors: | 4 |
| Cable Jacket: | LSZH - Low Smoke Zero Halogen |
| Optical Cable Type: | Multimode 50 / 125 |
Description
26000204 HITRONIC® HRH600 Breakout Cable
Fibre optic cable; GOF; 4x OM2; J-optical indoor cables
Product Design
Wavelength information: for 1300 nm applies 1.5 dB / km as well as 500 MHz*km
Wavelength information: for 850 nm applies 3.5 dB / km as well as 200 MHz*km
Numerical aperture: 0.275
Classification of fibre optic cable: Divisible breakout cable
Number of cores: 4
Number of fibres:4
Strain relief due to: Glass yarns
Fibre type: Multi-mode fibre
Max. conductor temperature, fixed installation: -20°C to 70°C
Max. conductor temperature, occasionally moved: -0°C to 50°C
Electrical / Insulation Parameters
Nominal outer diameter: 7 mm
Nominal core diameter: 2.1 mm
Diameter fibre core: 50 µm
Diameter fibre cladding: 125 µm
Diameter of primary coating: 245 µm
With tight buffer: Yes
Basic material of outer sheath: Halogen-free compound
Basic material of outer sheath, short form: LSZH
Outer sheath colour: orange (RAL2003)
Core identification: Numbers
Weight: 44 kg/km
Product Features
Flame retardant - Yes
For continuous flexing:- No
For torsional load: No
For continuous flexing:- No
For torsional load: No
Windable - No
Halogen Free - Yes acc. to IEC 60754-1
Suitable for EX-applications - No
Oil Resistant - No
UV Resistant - No
Weather Resistant -
PWIS-free - No
For continuous flexing - Occasional
For torsional load - No
With armouring - No
General Information
Easy to handle thanks to flexible and compact design
With reinforced glass yarn for strain relief
No electromagnetic interference from non-metallic materials is generated inside the cable
With halogen-free LSZH outer sheath
Can be used in dry and damp spaces
Available in different GOF fibre categories (OM1 - OM4, OS2)
Classified fire behaviour according to EU Directive 305/2011
Withstands high mechanical stress
Colours of outer sheaths:-
Violet for OM4, Aqua (RAL 6027) for OM3
Orange (RAL 2003) for OM2 and OM1
Yellow (RAL 1021) for single-mode OS2
Violet for OM4, Aqua (RAL 6027) for OM3
Orange (RAL 2003) for OM2 and OM1
Yellow (RAL 1021) for single-mode OS2
Lapp part number: 26000104
Length: 100M
