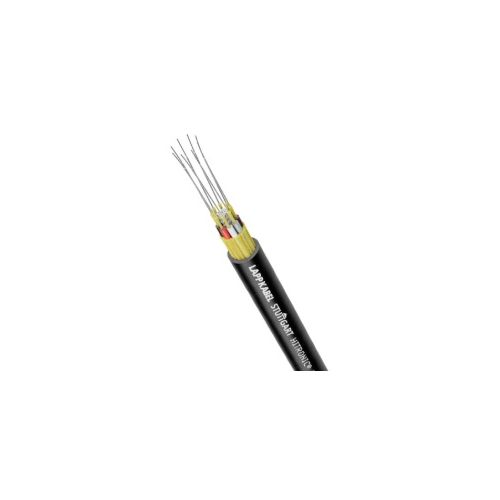

26300912 | HITRONIC HRM-FD1800 12E 9/125 OS2 | Optical Fibre Cable
Fibre Optic Breakout Cable, Designed for use in power trains, Cable Type: Single mode 9 /125 OS 2, Number of fibres: 12, Cable Outer Diameter: 13mm
| Complete Electronics Part No. | 26300912 |
|---|---|
| Manufacturers Part No. | 26300912 |
| Series: | Hitronic HRM-FD Cable |
| Number of Conductors: | 12 |
| Cable Jacket: | LSZH - Low Smoke Zero Halogen |
| Optical Cable Type: | Single Mode 9 / 125 |
Description
26300912 HITRONIC® HRM-FD 1800 12 E 9/125 OS2
HITRONIC® HRM Flexible Fibre Optic Cable Chain
Product Design
Wavelength information: for 1310 nm applies 0.4 dB / km
Wavelength information: for 1550 nm applies 0.4 dB / km
Classification: Divisible universal cable
Number of cores: 12
Number of fibres per core: 1
Number of fibres: 12
Strain relief due to: Aramid yarns
Fibre type: Single-mode fibre
Max. conductor temperature, fixed installation: -40°C to 70°C
Max. conductor temperature, occasionally moved: 0°C to 50°C
Electrical / Insulation Parameters
Nominal outer diameter: 13 mm
Diameter fibre core: 9 µm
Diameter fibre cladding: 125 µm
Diameter of primary coating: 242 µm
With tight buffer: Yes
Basic material of outer sheath: Polyurethane (PUR)
Basic material of inner sheath: Halogen-free compound (LSZH)
Outer Sheath colour: Black (RAL9005)
Armouring type: None
Core identification: Colours
Weight: 98 kg/km
Product Features
Flame retardant - Yes
For continuous flexing:- Yes
For torsional load: No
For continuous flexing:- Yes
For torsional load: No
Windable - No
Halogen Free - Yes acc. to IEC 60754-1
Suitable for EX-applications - No
Oil Resistant - No
UV Resistant - Yes
Acid Resistant - No
Weather Resistant - No
PWIS-free - No
With rodent protection - No
With armouring - No
General Information
Laterally watertight - No
Longitudinally watertight - No
Designed for use in power chains
For highly flexible industrial applications
Suitable for field assembly
Suitable for indoor and outdoor use
In vertical installations
Industrial environments
Product standard according to IEC 60794
Lapp part number: 26300912
Length: 100M
Length: 100M
