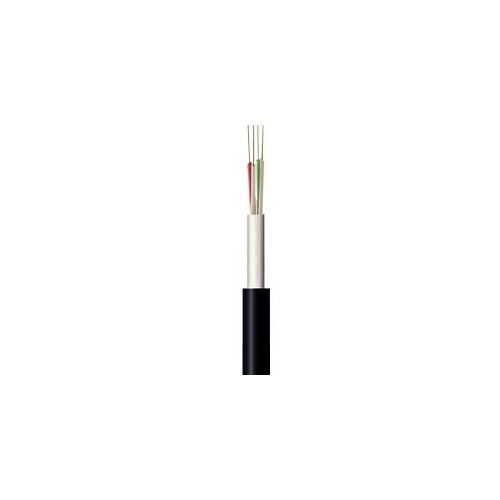

26600348 | HITRONIC HVN5000 4x12 G50/125 OM3 | Optical Fibre Cable
Multimode Fibre Optic outdoor cable, Cable Type: Multimode 50 /125 OM 3, Number of fibres: 48, Cable Outer Diameter: 11mm, Suitable for direct burial
| Complete Electronics Part No. | 26600348 |
|---|---|
| Manufacturers Part No. | 26600348 |
| Series: | Hitronic HVN Cable |
| Number of Conductors: | 48 |
| Cable Jacket: | PE |
| Optical Cable Type: | Multimode 50 / 125 |
Description
26600348 HITRONIC® HVN5000 4x12 G 50/125 OM3
HITRONIC® HVN Optical Outdoor Cable
Product Design
Wavelength information: for 850 nm applies 3.5 dB / km as well as 500 MHz*km
Wavelength information: for 1300 nm applies 3.5 dB / km km as well as 500 MHz*km
Classification: Cable with stranded, gel-filled loose tubes
Number of cores: 4
Number of fibres per core: 12
Number of fibres: 48
Strain relief due to: Glass yarns
Fibre type: Multi-mode fibre
Max. conductor temperature, fixed installation: -40°C to 70°C
Max. conductor temperature, occasionally moved: -5°C to 50°C
Electrical / Insulation Parameters
Nominal outer diameter: 11 mm
Diameter fibre core: 50 µm
Diameter fibre cladding: 125 µm
Diameter of primary coating: 242 µm
With tight buffer: No
Ripcord below outer sheath: Yes
Basic material of outer sheath: Polyethylene (PE)
Outer Sheath colour: Black (RAL9005)
Armouring type: None
Core identification: Colours
Weight: 84 kg/km
Product Features
Flame retardant - No
For continuous flexing:- No / Occasional
For torsional load: No
For continuous flexing:- No / Occasional
For torsional load: No
Windable - No
Halogen Free - Yes acc. to IEC 60754-1
Suitable for EX-applications - No
Oil Resistant - No
UV Resistant - Yes
Weather Resistant - Yes
PWIS-free - No
Tensile force, Fixed installation: 5000 N
Tensile force, short term: 6000N
With rodent protection - No
With armouring - No
General Information
Laterally watertight
Longitudinally watertight
Can be used in dry, damp, wet and harsh environments
Suitable for installation in ducts and closed installation channels
The PE outer sheath is highly resistant to acids and alkaline solutions
Withstands high mechanical stress
Suitable for indoor and outdoor use
Not suitable for EX-applications
Product standard according to IEC IEC 60794
Lapp part number: 26600348
Length: 100M
