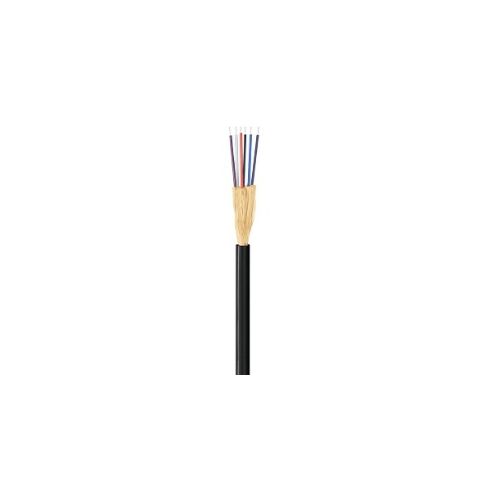

26610906 | HITRONIC HDM600 6E 9/125 OS2 | Optical Fibre Cable
Fibre Optic mini Breakout Cable, Designed for frequent reeling and unreeling, Cable Type: Single mode 9 /125 OS 2, Number of fibres: 6, Cable Outer Diameter: 5.6mm
| Complete Electronics Part No. | 26610906 |
|---|---|
| Manufacturers Part No. | 26610906 |
| Series: | Hitronic HDM Cable |
| Number of Conductors: | 6 |
| Cable Jacket: | PUR |
| Optical Cable Type: | Single Mode 9 / 125 |
Description
26610906 HITRONIC® HDM 600 6 E 9/125 OS2
HITRONIC® HDM Flexible Fibre Optic Cable
Product Design
Wavelength information: for 1310 nm applies 0.4 dB / km as well as 1 MHz*km
Wavelength information: for 1550 nm applies 0.4 dB / km as well as 1 MHz*km
Classification: Divisible universal cable
Number of cores: 6
Number of fibres per core: 1
Number of fibres: 6
Strain relief due to: Aramid yarns
Fibre type: Single-mode fibre
Max. conductor temperature, fixed installation: -40°C to 70°C
Max. conductor temperature, occasionally moved: -5°C to 50°C
Electrical / Insulation Parameters
Nominal outer diameter: 5.6 mm
Diameter fibre core: 9 µm
Diameter fibre cladding: 125 µm
Diameter of primary coating: 245 µm
With tight buffer: Yes
Basic material of outer sheath: Polyurethane (PUR)
Outer Sheath colour: Black (RAL9005)
Armouring type: None
Core identification: Colours
Weight: 29 kg/km
Product Features
Flame retardant - No
For continuous flexing:- No / Occasional
For torsional load: No
For continuous flexing:- No / Occasional
For torsional load: No
Windable - Yes
Halogen Free - No
Suitable for EX-applications - No
Oil Resistant - No
UV Resistant - No
Weather Resistant - No
PWIS-free - No
With rodent protection - No
With armouring - No
General Information
Laterally watertight - No
Longitudinally watertight - No
Reelable for mobile use
Suitable for field application
Suitable for indoor and outdoor use
For Light & sound technology
Product standard according to IEC 60794
Lapp part number: 26610906
Length: 100M
Length: 100M
