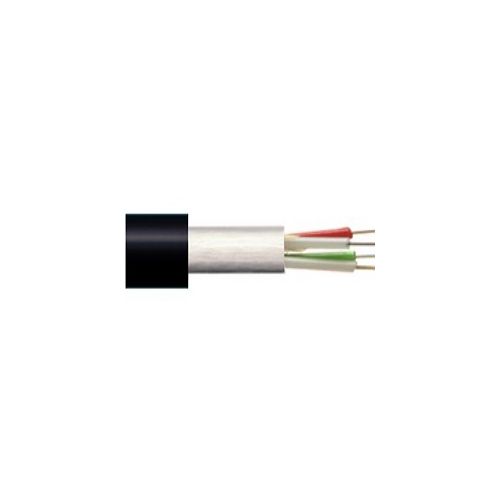

26640948 | HITRONIC HQA800 6x8E 9/125 OS2 | Optical Fibre Cable
Outdoor self-supporting aerial cable, Cable Type: Single mode 9 /125 OS 2, Number of fibres: 48, Cable Outer Diameter: 10.9mm, Mechanical support members (central filler and aramid yarns)
| Complete Electronics Part No. | 26640948 |
|---|---|
| Manufacturers Part No. | 26640948 |
| Series: | Hitronic HQA Cable |
| Number of Conductors: | 48 |
| Cable Jacket: | PE |
| Optical Cable Type: | Single Mode 9 / 125 |
Description
26640948 HITRONIC® HQA-800 6x8E 9/125 OS2
HITRONIC® HQA800 8x12E, Outdoor Suspension Cable
Product Design
Wavelength information: for 1550 nm applies 0.4 dB / km
Wavelength information: for 1310 nm applies 0.4 dB / km
Classification of fibre optic cable: Outdoor overhead cable
Additional stranding element: Central element
Number of fibres: 48
Number of fibres per core: 8
Strain relief due to: Glass yarns
Fibre type: Single-mode fibre
Max. conductor temperature, fixed installation: -30°C to 70°C
Max. conductor temperature, occasionally moved: -5°C to 50°C
Electrical / Insulation Parameters
Nominal outer diameter: 10.9 mm
Diameter fibre core: 9 µm
Diameter fibre cladding: 125 µm
Diameter of primary coating: 242 µm
With tight buffer: No
Ripcord below outer sheath: No
Basic material of outer sheath: Polyethylene (PE)
Outer Sheath colour: Black (RAL9005)
Core identification: Colours
Weight: 92 kg/km
Product Features
Flame retardant - No
For continuous flexing:- No / Occasional
For torsional load: No
For continuous flexing:- No / Occasional
For torsional load: No
Windable - No
Halogen Free - Yes acc. to IEC 60754-1
Suitable for EX-applications - No
Oil Resistant - No
UV Resistant - Yes
Weather Resistant - Yes
PWIS-free - No
Tensile force EDS: 2000N
Tensile force MAT: 800N
With rodent protection - No
With armouring - No
General Information
Laterally watertight
Can be used in dry, damp and wet environments
The PE outer sheath is highly resistant to acids and alkaline solutions
ADSS (all dielectric self-supporting) cable type
Withstands high mechanical stress
Suitable for indoor and outdoor use
Not suitable for EX-applications
Product standard according to IEC IEC 60794
Lapp part number: 26640948
Length: 100M
Length: 100M
