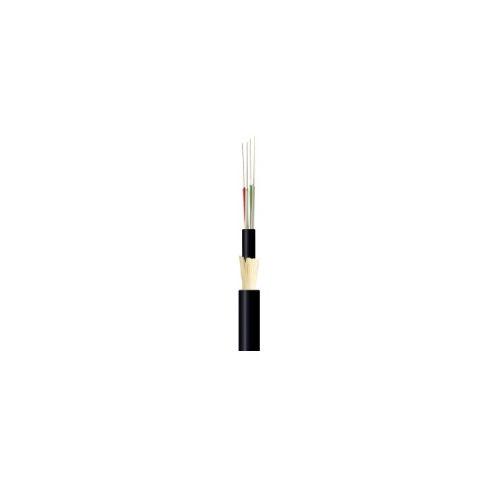

26644948 | HITRONIC HQA-Plus3200 6x8E 9/125 OS2 | Optical Fibre Cable
Outdoor self-supporting aerial cable, Cable Type: Single mode 9 /125 OS 2, Number of fibres: 48, Cable Outer Diameter: 13.7mm, Mechanical support members (central filler and aramid yarns)
| Complete Electronics Part No. | 26644948 |
|---|---|
| Manufacturers Part No. | 26644948 |
| Series: | Hitronic HQA Plus Cable |
| Number of Conductors: | 48 |
| Cable Jacket: | PE |
| Optical Cable Type: | Single Mode 9 / 125 |
Description
26644948 HITRONIC® HQA-Plus3200 6x8E 9/125 OS2
Optical outdoor cable: A-DQ(ZN)B2Y; Outdoor Suspension; Glass yarns; Polyethylene; black
Product Design
Wavelength information: for 1550 nm applies 0.4 dB / km
Wavelength information: for 1310 nm applies 0.4 dB / km
Classification of fibre optic cable: Outdoor overhead cable
Additional stranding element: Central element
Number of fibres: 48
Number of fibres per core: 8
Strain relief due to: Glass yarns
Fibre type: Single-mode fibre
Max. conductor temperature, fixed installation: -40°C to 70°C
Max. conductor temperature, occasionally moved: -5°C to 50°C
Electrical / Insulation Parameters
Nominal outer diameter: 15.3 mm
Diameter fibre core: 9 µm
Diameter fibre cladding: 125 µm
Diameter of primary coating: 242 µm
With tight buffer: No
Ripcord below outer sheath: No
Basic material of inner sheath: Polyethylene (PE)
Inner Sheath colour: Black
Basic material of outer sheath: Polyethylene (PE)
Outer Sheath colour: Black
Core identification: Colours
Weight: 151 kg/km
Product Features
Flame retardant - No
For continuous flexing:- No / Occasional
For torsional load: No
For continuous flexing:- No / Occasional
For torsional load: No
Windable - No
Halogen Free - Yes acc. to IEC 60754-1
Suitable for EX-applications - No
Oil Resistant - No
UV Resistant - Yes
Weather Resistant - Yes
PWIS-free - No
Tensile force EDS: 3200N
Tensile force MAT: 8000N
With rodent protection - No
With armouring - No
General Information
Laterally watertight
Can be used in dry, damp and wet environments
The PE outer sheath is highly resistant to acids and alkaline solutions
Withstands high mechanical stress
Suitable for indoor and outdoor use
Not suitable for EX-applications
Lapp part number: 26644948
Length: 100M
