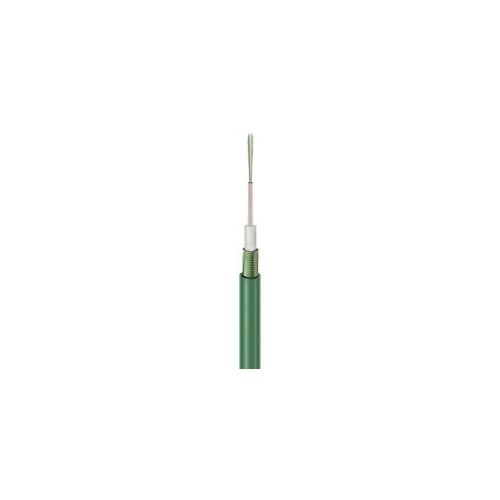

27500308 | HITRONIC HUW1500 8 G 50/125 OM3 | Armoured GOF
Armoured Universal Cable, Cable Type: Multimode 50 /125 OM 3, Number of fibres: 8, Cable Outer Diameter: 9.6mm, Suitable for indoor and outdoor installations
| Complete Electronics Part No. | 27500308 |
|---|---|
| Manufacturers Part No. | 27500308 |
| Series: | Hitronic HUW Cable |
| Number of Conductors: | 8 |
| Cable Jacket: | Armoured |
| Optical Cable Type: | Multimode 50 / 125 |
Description
27500308 HITRONIC® HUW armoured universal GOF cable
Fibre optic cable; HITRONIC® HUW1500 8 G 50/125 OM3
Product Design
Wavelength information: for 1300 nm applies 1.5 dB / km
Wavelength information: for 850 nm applies 3.5 dB / km
Classification of fibre optic cable: Gel-filled loose tube cable
Armouring type: Corrugated steel tape
Number of cores: 1
Number of fibres:8
Strain relief due to: Glass yarns
Fibre type: Multi-mode fibre
Max. conductor temperature, fixed installation: -30°C to 70°C
Max. conductor temperature, occasionally moved: -5°C to 50°C
Electrical / Insulation Parameters
Nominal outer diameter: 9.6 mm
Diameter fibre core: 50 µm
Diameter fibre cladding: 125 µm
Diameter of primary coating: 242 µm
With tight buffer: No
Ripcord below outer sheath: Yes
Basic material of outer sheath: Halogen-free compound
Flame-retardant, low smoke and halogen-free (LSZH)
Outer sheath colour: Green
Core identification: Colours
Weight: 105 kg/km
Product Features
Flame retardant - Yes (LSZH) acc. IEC 60332-1-2
For continuous flexing:- No / Occasional
For torsional load: No
For continuous flexing:- No / Occasional
For torsional load: No
Windable - No
Halogen Free - Yes acc. to IEC 60754-1
Suitable for EX-applications - No
Oil Resistant - No
UV Resistant - Yes
Weather Resistant -
PWIS-free - No
Tensile force, short-term: 2,700 N
With rodent protection - Yes
With armouring - Yes
General Information
Longitudinally watertight
Laterally watertight
Maximum lateral pressure: 2,000
With halogen-free LSZH outer sheath
Can be used in dry, damp and wet environments
Product standard according to IEC:IEC 60794
Withstands high mechanical stress
Available in different GOF fibre categories (OM1 - OM4, OS2).
Suitable for indoor and outdoor use.
Lapp part number: 27500308
Length: 100M
Length: 100M
