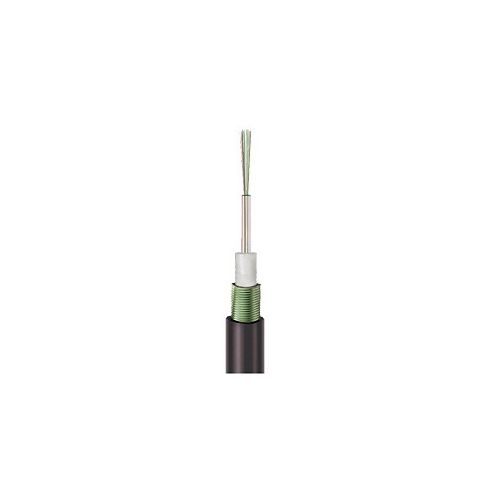

27900308 | HITRONIC HQW3000 8G 50/125 OM3 | Optical Fibre Cable
Multimode Fibre Optic Armoured outdoor cable, Cable Type: Multimode 50 /125 OM 3, No. of fibres: 8, Cable Outer Diameter: 9.6mm, With corrugated steel tape
| Complete Electronics Part No. | 27900308 |
|---|---|
| Manufacturers Part No. | 27900308 |
| Series: | Hitronic HQW Cable |
| Number of Conductors: | 8 |
| Cable Jacket: | Armoured |
| Optical Cable Type: | Multimode 50 / 125 |
Description
27900308 HITRONIC® HQW3000 8G 50/125 OM3
HITRONIC® HQW Armoured, Optical Outdoor Cable
Product Design
Wavelength information: for 850 nm applies 3.5 dB / km as well as 200 MHz*km
Wavelength information: for 1300 nm applies 1.5 dB / km as well as 500 MHz*km
Classification: Gel-filled loose tube cable
Number of cores: 1
Number of fibres per core: 8
Number of fibres: 8
Strain relief due to: Glass yarns
Armouring type: Corrugated steel tape
Fibre type: Multi-mode fibre
Max. conductor temperature, fixed installation: -40°C to 70°C
Max. conductor temperature, occasionally moved: -5°C to 50°C
Electrical / Insulation Parameters
Nominal outer diameter: 9.6 mm
Diameter fibre core: 62.5 µm
Diameter fibre cladding: 125 µm
Diameter of primary coating: 242 µm
With tight buffer: No
Ripcord below outer sheath: Yes
Basic material of outer sheath: Polyethylene (PE)
Outer Sheath colour: Black (RAL9005)
Armouring type: Corrugated steel tape
Core identification: Colours
Weight: 88 kg/km
Product Features
Flame retardant - No
For continuous flexing:- No / Occasional
For torsional load: No
For continuous flexing:- No / Occasional
For torsional load: No
Windable - No
Halogen Free - Yes acc. to IEC 60754-1
Suitable for EX-applications - No
Oil Resistant - No
UV Resistant - Yes
Weather Resistant - Yes
PWIS-free - No
Tensile force, Fixed installation: 3000 N
Tensile force, short term: 5700N
With rodent protection - Yes
With armouring - Yes
General Information
Laterally watertight
Longitudinally watertight
Can be used in dry, damp and wet environments
Suitable for installation in ducts and closed installation channels
The PE outer sheath is highly resistant to acids and alkaline solutions
Withstands high mechanical stress
Suitable for indoor and outdoor use
Not suitable for EX-applications
Product standard according to IEC IEC 60794
Lapp part number: 27900308
Length: 100M
