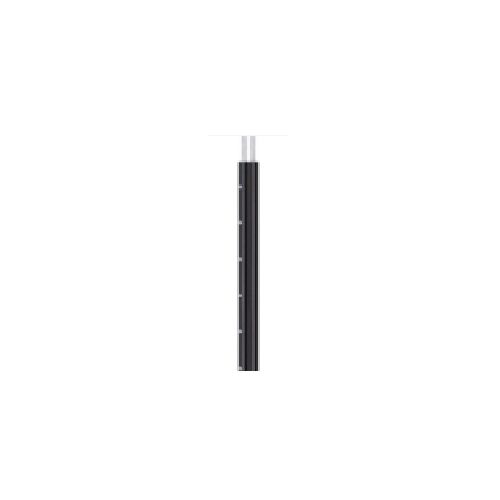

28000001 | HITRONIC POF SIMPLEX PE | Buffered Fibre

SIMPLEX BUFFERED FIBRE, Polymer optical fibre, With PE Outer Sheath, Fibre diameter 2.2mm, Colour: Black

More Information
Complete Electronics Part No.	28000001
Manufacturers Part No.	28000001
Series:	Hitronic POF Cable
Cable Jacket:	PE

Description

28000000 HITRONIC® POF Simplex Buffered Fibre PE

POF; J-optical indoor cables: Polyureyhane, multi-mode

Product Design

Wavelength information: for 650 nm applies 160 dB / km as well as 1 MHz*km

Wavelength information: for 660 nm applies 230 dB / km

Polymer optical fibres (POF), J-V2Y

Number of fibres: 1

Fibre type: Multi-mode fibre

Without armouring

Temperature, fixed installation -55°C to 85°C

max. conductor temperature, occasionally moved: -10°C to 50°C

Electrical / Insulation Parameters

Number of fibres:1

Nominal core diameter: 2.2mm

Nominal outer diameter: 2.2 mm

Diameter fibre core: 980 µm

Diameter fibre cladding: 1000 µm

Base material of fibre core: Polymethylmetacrylate (PMMA)

Base material buffer coating: Polyethelene(PE)

Outer Sheath colour: Black (RAL9005)

Core identification:

Armouring type: None

Weight: 4 kg/km

Product Features

Flame retardant - No

For continuous flexing:- No
For torsional load: No

Windable - No

Halogen Free - Yes

Suitable for EX-applications - No

Oil Resistant - No

UV Resistant - No

PWIS-free - No

With rodent protection - No

With armouring - No

General Information

Withstands chemical and mechanical stress

Halogen-free product that generates no harmful gases in the event of a fire.

Can be used in dry and wet conditions, and especially in harsh and oily environments#

Suitable for high mechanical stress due to the PE outer sheath

Tensile force fixed installation:5 N

Tensile force, short-term: 15 N

Lapp Part Number:28000000

Length: 100M

Download Datasheet
