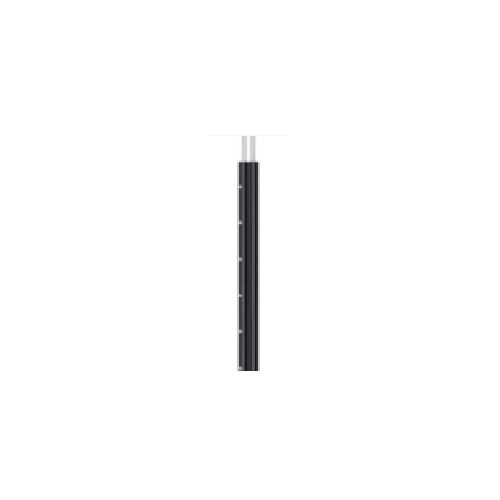

28000002 | HITRONIC POF DUPLEX PE | Optical fibre Cable
Twin buffered fibres with PE buffer, With PE sheath, Halogen-free, Transmission lengths up to 70 m, Suitable for direct connector assembly
| Complete Electronics Part No. | 28000002 |
|---|---|
| Manufacturers Part No. | 28000002 |
| Series: | Hitronic POF Cable |
| Cable Jacket: | PE |
Description
28000002 HITRONIC® POF Duplex PE cable
POF; J-optical indoor cables: Polyethylene, multi-mode
Product Design
Wavelength information: for 650 nm applies 160 dB / km as well as 1 MHz*km
Wavelength information: for 660 nm applies 230 dB / km
Divisible indoor cable
Polymer optical fibres (POF), J-V2Y
Separable twin cores
Number of fibres: 2
Fibre type: Multi-mode fibre
Without armouring
Max. conductor temperature, Fixed Installation: -55°C to 85°C
Electrical / Insulation Parameters
Number of fibres:2
Nominal core diameter: 2.2mm
Diameter fibre core: 980 µm
Diameter fibre cladding: 1000 µm
Base material of fibre core: Polymethylmetacrylate (PMMA)
Base material buffer coating: Polyethelene(PE)
Basic material of outer sheath:Polyethelene(PE)
Outer Sheath colour: Black (RAL9005)
Core identification: One fibre marked with white dots
Armouring type: None
Weight: 8 kg/km
Product Features
Divisible indoor cable
Flame retardant - No
For continuous flexing:- No
For torsional load: No
For torsional load: No
Windable - No
Halogen Free - No
Suitable for EX-applications - No
Oil Resistant - No
UV Resistant - No
PWIS-free - No
With rodent protection - No
With armouring - No
General Information
For fixed installation in ducts and closed installation channels
Withstands chemical and mechanical stress
Halogen-free product that generates no harmful gases in the event of a fire.
Can be used in dry and wet conditions, and especially in harsh and oily environments
The PE outer sheath withstands high mechanical loads
The PE outer sheath is highly resistant to acids and alkaline solutions
Tensile force fixed installation:10 N
Tensile force, short-term: 30 N
Lapp part number: 28000002
Length: 100M
Length: 100M
