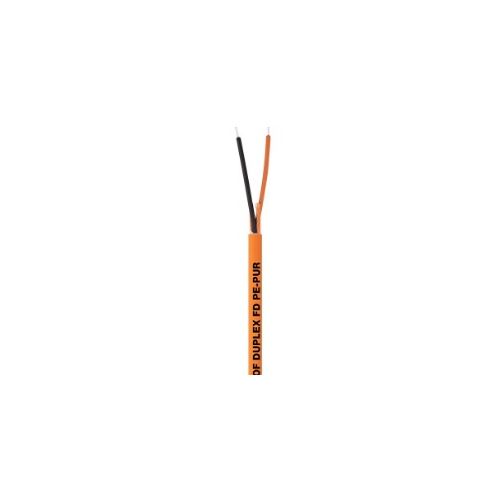

28320002 | HITRONIC POF DUPLEX FD PE-PUR | Optical fibre Cable
Polymer optical fibre as duplex fibre cable, For drag chain application , With PUR sheath, For fixed or flexible application, Oil-resistant
| Complete Electronics Part No. | 28320002 |
|---|---|
| Manufacturers Part No. | 28320002 |
| Series: | Hitronic POF Cable |
| Cable Jacket: | PUR |
Description
28320002 HITRONIC® POF Duplex cables
POF; J-optical indoor cables: Polyureyhane, multi-mode
Product Design
Wavelength information: for 650 nm applies 160 dB / km as well as 1 MHz*km
Wavelength information: for 660 nm applies 230 dB / km
Multi-mode fibre
Polymer optical fibres (POF), J-V2Y(ZN)11Y
Number of fibres: 2
Strain relief due to Aramid yarns
Fibre type: Multi-mode fibre
Without armouring
Max. conductor temperature, dynamic continuously flexing: -20°C to 70°C
Electrical / Insulation Parameters
Number of fibres:2
Nominal core diameter: 2.2mm
Nominal outer diameter: 6 mm
Diameter fibre core: 980 µm
Diameter fibre cladding: 1000 µm
Base material of fibre core: Polymethylmetacrylate (PMMA)
Base material buffer coating: Polyethelene(PE)
Basic material of outer sheath:Polyurethane(PUR)
Outer Sheath colour: Orange
Core identification: Colours
Armouring type: None
Weight: 30 kg/km
Product Features
Application area: Flexible Cable chain
Flame retardant - Yes
For continuous flexing:- Yes
For torsional load: No
For torsional load: No
Windable - No
Halogen Free - No
Suitable for EX-applications - No
Oil Resistant - Yes
UV Resistant - No
PWIS-free - No
With rodent protection - No
With armouring - No
General Information
Withstands chemical and mechanical stress
Halogen-free product that generates no harmful gases in the event of a fire.
For flexible use
Can be used in dry and wet conditions, and especially in harsh and oily environments
The PUR outer sheath withstands high mechanical loads
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals
Tensile force fixed installation:100 N
Tensile force, short-term: 400 N
EAC-certified
Lapp part number: 28320002
Length: 100M
