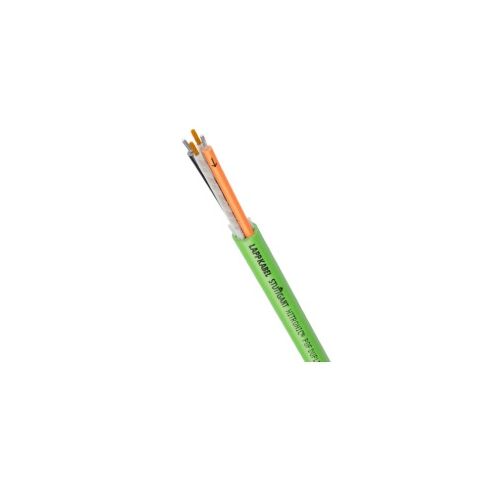

28351002 | HITRONIC POF DUPLEX FD PNC PA-PUR | Optical fibre Cable
Polymer optical fibre as duplex fibre cable, For Profinet type C, For power chain applications, Heat-resistant, Suitable for direct connector assembly
| Complete Electronics Part No. | 28351002 |
|---|---|
| Manufacturers Part No. | 28351002 |
| Series: | Hitronic POF Cable |
| Cable Jacket: | PUR |
Description
28351002 HITRONIC® POF cables for PROFINET Applications
POF; J-optical indoor cables: Polyurethane, multi-mode
Product Design
Wavelength information: for 650 nm applies 160 dB / km as well as 1 MHz*km
Wavelength information: for 660 nm applies 230 dB / km
Multi-mode fibre
Polymer optical fibres (POF), J-V4Y(ZN)11Y
Number of fibres: 2
Strain relief due to aramid yarns
Fibre type: Multi-mode fibre
Numerical aperature: 0.5
Without armouring
Max. conductor temperature, dynamic continuously flexing installation: -20°C to 70°C
Electrical / Insulation Parameters
Number of fibres:2
Nominal core diameter: 2.2mm
Nominal outer diameter: 8 mm
Diameter fibre core: 980 µm
Diameter fibre cladding: 1000 µm
Colour of buffer: Black/Orange, with arrow printing
Base material of fibre core: Polymethylmetacrylate (PMMA)
Base material buffer coating: Polyamide (PA)
Basic material of outer sheath: Polyurethane (PUR)
Outer Sheath colour: Green, similar to RAL 6018
Core identification: Colours
Armouring type: None
Weight: 55 kg/km
Product Features
Application area: Flexible Cable chain
PROFINET Type C
Flame retardant - No
Low smoke density acc to IEC 61034-2
For continuous flexing:- Yes
For torsional load: No
For continuous flexing:- Yes
For torsional load: No
Windable - Yes
Halogen Free - No
Suitable for EX-applications - No
Oil Resistant - Yes (IEC 60811-2-1, EN 50363-10-2)
UV Resistant - No
PWIS-free - No
With rodent protection - No
With armouring - No
General Information
For flexible use in the PROFINET network
Withstands chemical and mechanical stress
Available with robust PVC or abrasion-resistant PUR outer sheath
Suitable for applications in industrial environments
Cable length of up to 50 meters at data rate of 100 Mbit/s.
EAC-certified
Lapp part number: 28351002
Length: 100M
