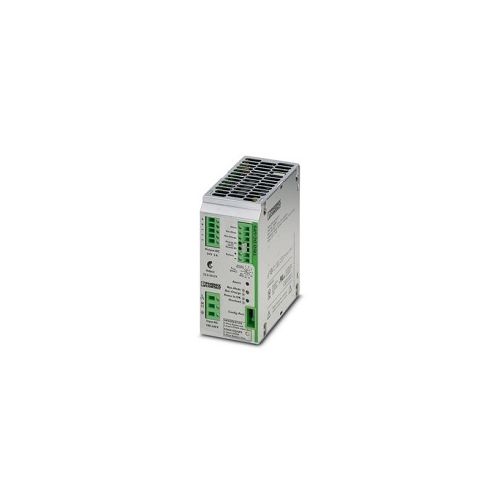

2866611 | TRIO-UPS/1AC/24DC/ 5 | UPS
Uninterruptible power supply with integrated power supply unit. For lead AGM battery module MINI-BAT/24/DC/1.3 AH, QUINT-BAT/24DC 3.4 AH … 12 AH
| Complete Electronics Part No. | 2866611 |
|---|---|
| Manufacturers Part No. | 2866611 |
| Phoenix Ethernet Series: | Trio UPS |
| Input Voltage: | AC 100V to 240V |
| Operating Voltage: | DC 24 V |
| Output Type: | 5 A |
Description
TRIO-UPS/1AC/24DC/ 5
Uninterruptible Power Supply
Input Data
Input voltage range: 100 V AC ... 240 V AC -15 % ... +10 %
Typical current consumption: 5 A (100 V AC)
Input fuse: 6.3 A (slow-blow, internal)
Permissible backup fuse: B6 B10 B16
Recommended breaker for input protection: 6 A ... 16 A (Characteristics B, C, D, K)
Switch-on time typ. 200 ms
Output Data (Mains Operation)
Output voltage: 24 V DC
Output voltage range 22.5 V DC ... 29.5 V DC
Output current: 5 A
Output Data (Battery Operation)
Nominal Output voltage: 24 V DC
Output voltage range 19.2 V DC ... 27.6 V DC
Output current: 5 A
Functionality
Buffer failures lasting up to two hours with 5 A load current
USB interface for connection to higher-level controllers such as industrial PCs
Startup from energy storage possible, even without mains input
Connection method: Screw connection
Interface: IFS (Interface system data port)
Degree of protection: IP20
Operating Temperature: -25°C ... 70°C
UL/C-UL Recognized UL 60950-1 (see datasheet for complete list of approvals)
Dimensions
Width: 60 mm
Height: 130 mm
Depth: 118 mm
Mounting Type: DIN Rail
Commercial data
Weight per Piece (excluding packing): 939 g
Weight per Piece (including packing): 1108.8 g
Part Number: 2866611
GTIN: 4046356311809
Customs tariff number: 85044095
Country of Origin: CN
