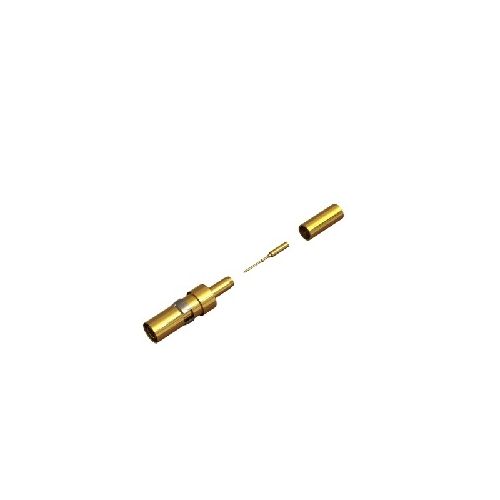

29-005-D36-AB | 29005D36AB | Crimp Straight Plug Insert
75 Ohm Coax Crimp / Crimp Straight Plug Insert
| Complete Electronics Part No. | 29005D36AB |
|---|---|
| Manufacturers Part No. | 29-005-D36-AB |
| Type | DIN 41626 |
Description
Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 3GHz
Dielectric Withstand Voltage 750 Veff
Insulation Resistance 1000 M-Ohm
Mechanical Specification
Design Standard IEC 41626
RoHS3 Compliant
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Weight 1.82g
Mating Force 6.6Ncm min
Un-Coupling Force 6.6Ncm min
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Suitable for use with RG179 and similar cables
Centre Contact Beryllium Copper
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1
Important Note: Do not mix 50ohm and 75ohm variants of this series or damage will occur to the centre contacts
