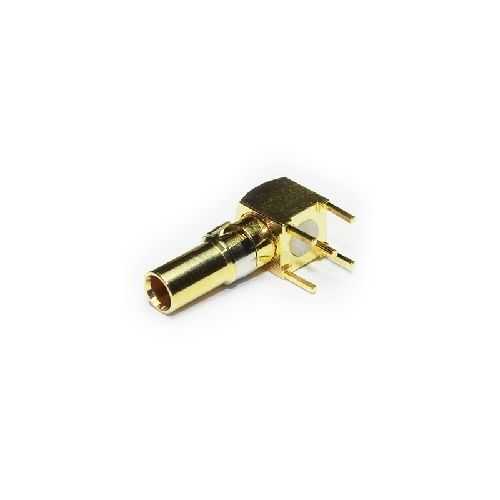

29-468-D6 | 29468D6 | R/A PCB Mount Jack Insert
DIN 41626 50 ohm right angle PCB mount insert
| Complete Electronics Part No. | 29468D6 |
|---|---|
| Manufacturers Part No. | 29-468-D6 |
| Type | DIN 41626 |
Description
Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 1.5GHz
Dielectric Withstand Voltage 750 Veff
Insulation Resistance 1000 M-Ohm
Mechanical Specification
Design Standard IEC 41626
RoHS3 Compliant
Centre Contact Termination Solder
Outer Contact Termination Solder
Mating Cycles 250
Weight 1.82g
Contact Retention 20N min
Mating Force 6.6Ncm min
Un-Coupling Force 6.6Ncm min
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Beryllium Copper
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1
Important Note: Do not mix 50ohm and 75ohm variants of this series or damage will occur to the centre contacts
