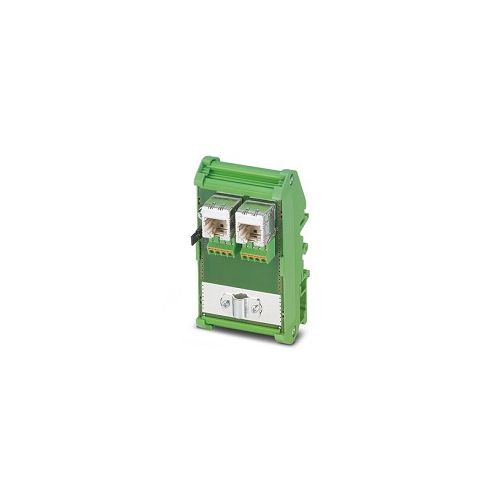

2903532 | FL-PP-RJ45-SCC/SC041 | Patch panel

Cable sharing module, two RJ45 jacks with Ethernet assignment (cable outlet on the front) to 8 spring-cage connection terminal blocks, CAT5e

More Information
Complete Electronics Part No 2903532
Manufacturers Part No. 2903532
Ethernet Product Type Patch Panel
Total 10/100 (RJ45) Ports 2
IP Rating IP20


Cable sharing module

  • Two RJ45 jacks  to 8 spring-cage connection terminal blocks
  • With Ethernet assignment (cable outlet on the front)
  • Pin assignment: 1,2,3,6
  • CAT5e
  • 10/100 Mbps
  • Option of shield contacting on DIN rail via jumpers
  • Degree of protection: IP20
  • Operating Temperature: -10°C ... 50°C
  • Width: 52mm
  • Height: 90mm
  • Depth: 51mm
  • Mounting Type: DIN Rail
  • Approvals: ISA-S71.04-1985 G3 Harsh Group A
  • Weight per Piece (excluding packing): 64.3 g
  • Part Number: 2903532
  • GTIN: 4046356746748
  • Customs tariff number 85366990
  • Country of origin: DE
  • Minimum Order Qty.: 1
