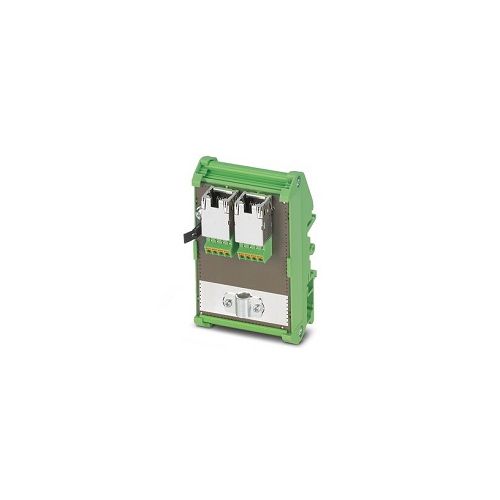

2904577 | FL-PP-RJ45-SCC/SC045 | Patch panel
Cable sharing module, two RJ45 jacks with Ethernet assignment (cable outlet on the top) to 8 spring-cage connection terminal blocks, CAT5e
| Complete Electronics Part No. | 2904577 |
|---|---|
| Manufacturers Part No. | 2904577 |
| Ethernet Product Type: | Patch Panel |
| Total 10/100 (RJ45) Ports: | 2 |
| IP Rating: | IP20 |
Description
FL-PP-RJ45-SCC/SC045
Cable sharing module
- Two RJ45 jacks to 8 spring-cage connection terminal blocks
- With Ethernet assignment (cable outlet on the top)
- Pin assignment: 1,2,3,6 4,5,7,8
- CAT5e
- 10/100 Mbps
- Option of shield contacting on DIN rail via jumpers
- Degree of protection: IP20
- Operating Temperature: -10°C ... 50°C
- Width: 56mm
- Height: 90mm
- Depth: 51mm
- Mounting Type: DIN Rail
- Approvals: ISA-S71.04-1985 G3 Harsh Group A
- Weight per Piece (excluding packing): 106.4 g
- Part Number: 2904577
- GTIN: 4046356864541
- Customs tariff number 85369010
- Country of origin: DE
- Minimum Order Qty.: 1
