2906993 | QUINT4-UPS/24DC/24DC/5/PN | UPS

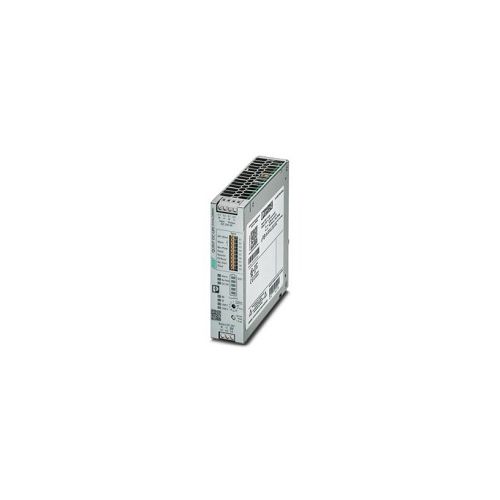

QUINT USV, IQ Technology, PROFINET, DIN rail mounting, Screw connection, input: 24 V DC, output: 24 V DC / 5 A, charging current: 1.5 A

More Information
Complete Electronics Part No. 2906993
Manufacturers Part No. 2906993
Phoenix Ethernet Series: Quint UPS
Input Voltage 24 V DC
Operating Voltage: DC 24 V
Output Type 5 A
Description

QUINT4-UPS/24DC/24DC/5/PN

Uninterruptible Power Supply

Input Data

Input voltage: 24 V DC
Input voltage range: 18 V DC ... 30 V DC
Internal input fuse: No
Reverse polarity protection: Yes
Switch-on time max. 3 s

Output Data (Mains Operation)

Nominal output voltage: 24 V DC
Output voltage range 18 V DC ... 30 V DC
Nominal output current: 5 A
Static Boost: 6.25 A
Dynamic boost: 10 A (5 s)
Selective Fuse Breaking: 30 A (15 ms)
Output power: 120 W
Output power static boost: 155 W
Output power dynamic boost: 240 W (5s)

Output Data (Battery Operation)

Nominal output voltage: 24 V DC
Output voltage range 19 V DC ... 32 V DC
Nominal output current: 5 A
Static Boost: 6.25 A
Selective Fuse Breaking: 30 A (15 ms)
Output power: 120 W
Output power static boost: 150 W
Output power dynamic boost: 240 W (5s)

Functionality

Battery technology: VRLA, VRLA-WTR, LI-ION
Monitoring of output current and voltage
Evaluation of state of health (SOH)
Evaluation: state of charge (SOC)
Intelligent battery management system (BMS)
SFB Technology selectively trips standard miniature circuit breakers
Number of outputs: 1
Reverse polarity protection: yes
Short-circuit-proof: yes
No-load proof yes
Switch-over time 0 ms
Temperature sensor: Yes
Interface: PROFINET
Number of interfaces: 2
Connection method: RJ45
Supported protocols PROFINET, LLPD
UPS connection in series: No
UPS connection in parallel: No
IQ-Technology: Yes
Connection method: Screw connection / Push-in connection
Degree of protection: IP20
Operating Temperature: -25°C ... 70°C (> 60 °C Derating: 2,5 %/K)
Housing materials: Metal / Stainless steel X6Cr17 / Aluminum AlMg3
Ul approval: UL/C-UL Listed UL 61010-1 (see datasheet for complete list of approvals)

Dimensions

Width: 35 mm
Height: 130 mm
Depth: 125 mm
Mounting Type: DIN Rail

Item dimensions with alternative mounting
Width: 123 mm
Height: 130 mm
Depth: 37 mm

Commercial data

Weight per Piece (excluding packing): 448 g
Weight per Piece (including packing): 496 g
Part Number:2906993
GTIN: 4055626171241
Customs tariff number: 85371091
Country of Origin: CN
