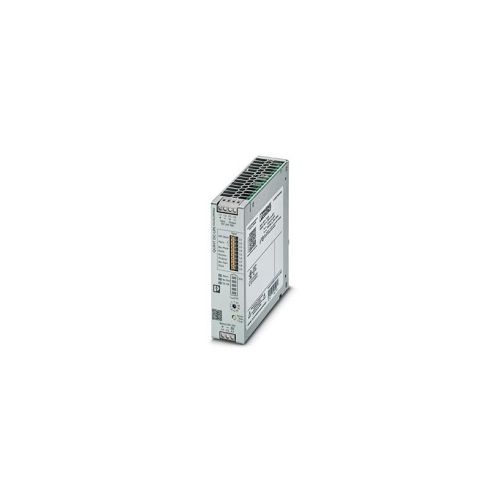

QUINT4-UPS/24DC/24DC/10
Uninterruptible Power Supply
Input Data
Input voltage: 24 V DC
Input voltage range: 18 V DC ... 30 V DC
Internal input fuse: No
Reverse polarity protection: Yes
Switch-on time max. 3 s
Output Data (Mains Operation)
Nominal output voltage: 24 V DC
Output voltage range 18 V DC ... 30 V DC
Nominal output current: 10 A
Static Boost: 12.5 A
Dynamic boost: 20 A (5 s)
Selective Fuse Breaking: 60 A (15 ms)
Output power: 240 W
Output power static boost: 300 W
Output power dynamic boost: 480 W (5 s)
Output Data (Battery Operation)
Nominal output voltage: 24 V DC
Output voltage range 19 V DC ... 28 V DC
Nominal output current: 10 A
Static Boost: 12.5 A
Selective Fuse Breaking: 60 A (15 ms)
Output power: 240 W
Output power static boost: 300 W
Output power dynamic boost: 480 W (5s)
Functionality
Battery technology: VRLA, VRLA-WTR, LI-ION
Evaluation of state of health (SOH)
Evaluation: state of charge (SOC)
Intelligent battery management system (BMS)
SFB Technology selectively trips standard miniature circuit breakers
Number of outputs: 1
Reverse polarity protection: yes
Short-circuit-proof: yes
No-load proof yes
Switch-over time 0 ms
UPS connection in parallel: No
UPS connection in series: No
IQ-Technology: Yes
Connection method: Screw connection / Push-in connection
Degree of protection: IP20
Operating Temperature: -25°C ... 70°C (> 60 °C Derating: 2,5 %/K)
Housing materials: Metal / Stainless steel X6Cr17 / Aluminum AlMg3
Ul approval: UL/C-UL Listed UL 61010-1 (see datasheet for complete list of approvals)
Dimensions
Width: 35 mm
Height: 130 mm
Depth: 132 mm
Mounting Type: DIN Rail
Item dimensions with alternative mounting
Width: 123 mm
Height: 130 mm
Depth: 37 mm
Commercial data
Weight per Piece (excluding packing): 434 g
Weight per Piece (including packing): 510.8 g
Part Number: 2907066
GTIN: 4055626171203
Customs tariff number: 85371091
Country of Origin: CN
