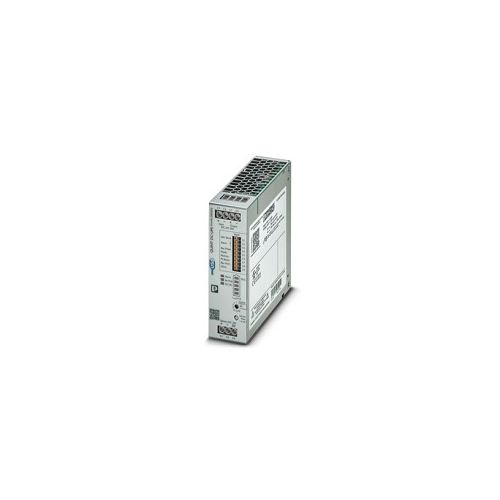

2907072 | QUINT4-UPS/24DC/24DC/20/USB | UPS
QUINT USV, IQ Technology, USB, DIN rail mounting, Screw connection, input: 24 V DC, output: 24 V DC / 20 A, charging current: 5 A
| Complete Electronics Part No. | 2907072 |
|---|---|
| Manufacturers Part No. | 2907072 |
| Phoenix Ethernet Series: | Quint UPS |
| Input Voltage: | 24 V DC |
| Operating Voltage: | DC 24 V |
| Output Type: | 20 A |
Description
QUINT4-UPS/24DC/24DC/20/USB
Uninterruptible Power Supply
Input Data
Input voltage: 24 V DC
Input voltage range: 18 V DC ... 30 V DC
Internal input fuse: No
Reverse polarity protection: Yes
Switch-on time max. 3 s
Output Data (Mains Operation)
Nominal output voltage: 24 V DC
Output voltage range 18 V DC ... 30 V DC
Nominal output current: 20 A
Static Boost: 25 A (0 °C ... 40 °C)
Dynamic Boost: 30 A (5 s)
Selective Fuse Breaking: 120 A (15 ms)
Output power: 480 W
Output power -boost: 600W
Output Data (Battery Operation)
Nominal Output Voltage: 24 V DC
Output voltage range: 19 V DC ... 32 V DC
Nominal output current: 20A
Static Boost: 25 A
Selective Fuse Breaking 120 A (15 ms)
Output power: 480 W
Output power boost:600 W
Functionality
Evaluation of state of health (SOH)
Evaluation: state of charge (SOC)
Intelligent battery management system (BMS)
SFB Technology selectively trips standard miniature circuit breakers
Number of outputs: 1
Short-circuit-proof: Yes
No-load proof: Yes
UPS connection in parallel: No
UPS connection in series: No
IQ-Technology: Yes
Temperature sensor: Yes
Connection method: Screw connection / Push-in connection
Transmission physics: USB 2.0
Transmission speed 9600 baud ... 115200 baud (Default: 115200 baud)
Degree of protection: IP20
Operating Temperature: -25°C ... 70°C
Housing materials: Metal / Stainless steel X6Cr17 / Aluminum AlMg3
Ul approval: UL/C-UL Listed UL 61010-1 (see datasheet for complete list of approvals)
Dimensions
Width: 40 mm
Height: 130 mm
Depth: 125 mm
Mounting Type: DIN Rail
Item dimensions with alternative mounting
Width: 123 mm
Height: 130 mm
Depth: 42 mm
Commercial Data
Weight per Piece (excluding packing): 520 g
Weight per Piece (including packing): 592.3 g
Part Number: 2907072
GTIN: 4055626171289
Customs tariff number: 85371091
Country of Origin: CN
