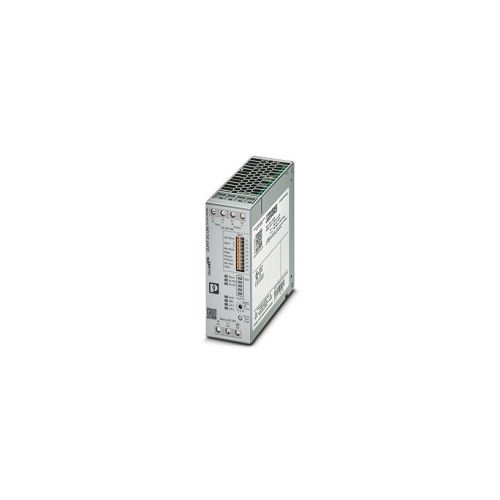

2907081 | QUINT4-UPS/24DC/24DC/40/EC | UPS

QUINT USV, IQ Technology, EtherCAT®, DIN rail mounting, Screw connection, input: 24 V DC,
output: 24 V DC / 40 A, charging current: 5 A

More Information
Complete Electronics Part No. 2907081
Manufacturers Part No. 2907081
Phoenix Ethernet Series: Quint UPS
Input Voltage 24 V DC
Operating Voltage: DC 24 V
Output Type 40 A


Uninterruptible Power Supply

Input Data

Input voltage: 24 V DC
Input voltage range: 18 V DC ... 30 V DC
Switch-on time: max. 3 s
Reverse polarity protection: yes

Output Data (Mains Operation)

Output voltage: 24 V DC
Output voltage range 18 V DC ... 30 V DC
Output current: 40 A
Dynamic Boost: 60 A (5s)
Static Boost: 45 A
Selective Fuse Breaking: 215 A (15 ms)
Output Power: 960 W
Output power static boost: 1080 W

Output Data (Battery Operation)

Output voltage range: 18 V DC ... 30 V DC
Output current: 40A
Short-circuit-proof: yes
No-load proof: yes


Intelligent battery management system (BMS)
Evaluation of state of health (SOH)
Evaluation of state of charge (SOC)
Monitoring of output current and voltage,
UPS connection in parallel: No
UPS connection in series: No
Connection method: Push-in connection / Screw connection
Interface: EtherCAT®
Connection method: RJ45
Degree of protection: IP20
Operating Temperature: -25°C ... 70°C
Ul approval: UL/C-UL Listed UL 61010-1 ( For full list of approvals see datasheet)


Width: 47 mm
Height: 130 mm
Depth: 125 mm
Mounting Type: DIN Rail
Item dimensions with alternative mounting
Width: 123 mm
Height: 130 mm
Depth: 49 mm

Commercial data

Weight per Piece (excluding packing): 592 g
Weight per Piece (including packing): 752 g
Part Number: 2907081
GTIN: 4055626171722
Customs tariff number: 85371091
Country of Origin: CN
