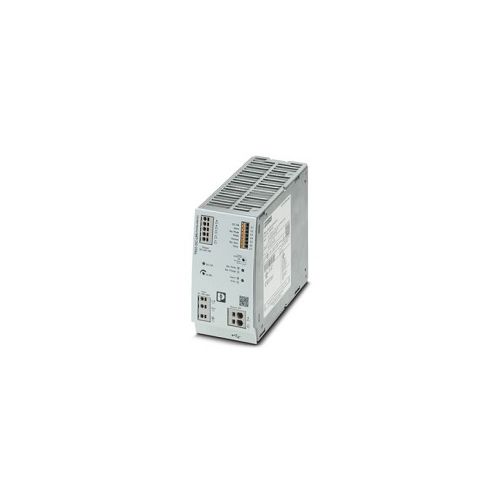

2907161 | TRIO-UPS-2G/1AC/24DC/10 | UPS
UPS with integrated power supply, USB (Modbus/RTU), DIN rail mounting, Push-in connection, input: 1-phase, output: 24 V DC / 10 A
| Complete Electronics Part No. | 2907161 |
|---|---|
| Manufacturers Part No. | 2907161 |
| Phoenix Ethernet Series: | Trio UPS |
| Input Voltage | AC 100V to 240V |
| Operating Voltage: | DC 24 V |
| Output Type | 10 A |
Description
TRIO-UPS-2G/1AC/24DC/10
Uninterruptible Power Supply
Input Data
Input voltage range: 100 V AC ... 240 V AC -15 % ... +10 %
Typical current consumption: 4.5 A (100 V AC)
Input fuse: 6.3 A (slow-blow, internal)
Switch-on time typ. 200 ms
Output Data (Mains Operation)
Output voltage: 24 V DC
Output voltage range 24 V DC ... 28 V DC (> 24 V constant capacity)
Output current: 10 A
Dynamic Boost: 15 A
Output power: 240W
Output Data (Battery Operation)
Output voltage: 24 V DC
Output voltage range: 18 V DC ... 30 V DC
Output current: 10A
Functionality
Long buffer times, thanks to large selection of VRLA energy storage systems
USB interface for connection to higher-level controllers such as industrial PCs
Startup from energy storage possible, even without mains input
Signal Alarm: Red LED
Signal Battery mode: Yellow LED
Signal DC OK: Green LED
Connection method: Push-in connection
Interface: USB (Modbus/RTU), Mini USB Type B
Degree of protection: IP20
Operating Temperature: -25°C ... 70°C
UL Listed UL 61010 (see datasheet for complete list of approvals)
Dimensions
Width: 68 mm
Height: 130 mm
Depth: 68 mm
Mounting Type: DIN Rail
Commercial data
Weight per Piece (excluding packing): 1357 g
Weight per Piece (including packing): 1637 g
Part Number: 2907161
GTIN: 4055626166582
Customs tariff number: 85044095
Country of Origin: CN
