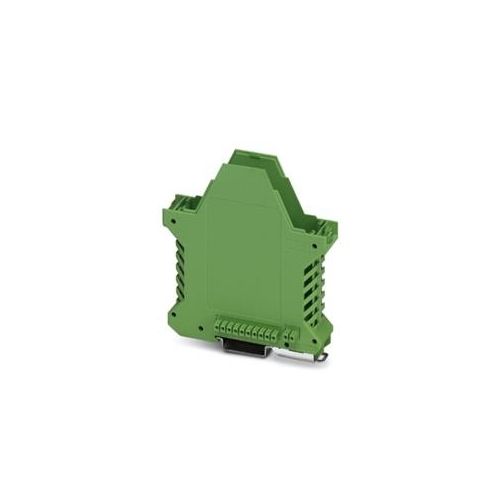

2915232 | ME 22,5 UT BUS/10+2 GN | Component housing with vents
Component housing with vents, Lower part, from the ME product range, Length: 99 mm, Width: 22.5mm, Number of positions: 3
More Information
Complete Electronics Part No.
2915232
Manufacturers Part No.
2915232
Material / Type
Housing
Enclosure Shape
Square
Enclosure Length
51mm to 100mm
Enclosure Width
up to 50mm
Enclosure Height
101mm to 150mm
Housing Selection
ME Series Housings
Description
ME 22,5 UT BUS/10+2 GN
Component housing with vents
Lower part
from the ME product range
Length: 99 mm
Width: 22.5mm
Height: 114.5mm
Cross connection: DIN rail bus connector
Number of positions cross connector: 10+2
Tool-free mounting
Operating Temperature -40°C..105°C
Colour: Green
Material: Polyamide
Weight per Piece (excluding packing) 44.270 g
Country of origin: Germany
