30-001-D3-AH | 30001D3AH | SMA Solder / Clamp Plug

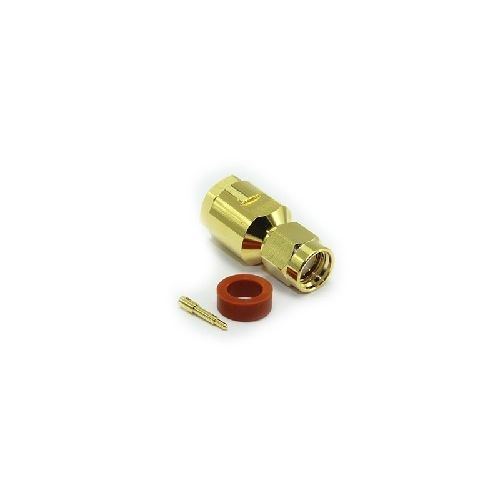

SMA solder clamp plug. Centre contact is soldered with a top hat braid and jacket clamp. Suitable for use with RG58 and similar cables in group AH.
More Information
Complete Electronics Part No. 30001D3AH
Manufacturers Part No. 30-001-D3-AH
Type Straight
Impedance 50 Ohm
Working Frequency Ultra HD (12GHz +)
Description

Electrical Specification

  • Impedance: 50 Ohm
  • Frequency Range: Up to 12.5GHz
  • Dielectric Withstand Voltage 750 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • Design Standard: IEC 60169-15
  • RoHS3 Compliant
  • Centre Contact Termination: Solder
  • Outer Contact Termination: Top Hat Clamp
  • Mating Cycles: 100
  • Contact Retention: 27N min
  • Cable Retention: 100N min
  • Weight: 13.69g
  • Mating Force: 23Ncn
  • Un-Coupling Force: 23Ncn
  • Recommended Coupling Nut Torque: 60Ncm Max
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP67

Materials

  • Centre Contact: Brass
  • Outer Contact:   Brass
  • Insulator: PTFE
  • Screw Coupling Nut: Brass
  • Gasket: Silicone
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Gold
  • Pack Size 1
