30-005-B3-AH | 30005B3AH | SMA Crimp / Crimp Plug (Nickel)

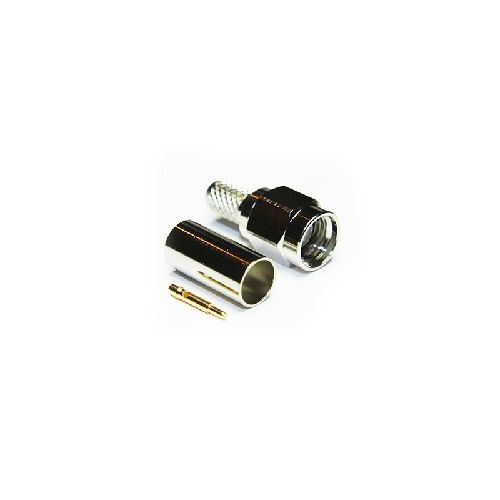

SMA straight full crimp plug. With gold plated contact and nickel plated body. Suitable for use with RG174 and similar cables in group AH
More Information
Complete Electronics Part No. 30005B3AH
Manufacturers Part No. 30-005-B3-AH
Type Straight
Impedance 50 Ohm
Working Frequency Ultra HD (12GHz +)
Description

Electrical Specification

  • Impedance: 50 Ohm
  • Frequency Range: Up to 12.5GHz
  • Dielectric Withstand Voltage 750 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • Design Standard: IEC 60169-15
  • RoHS3 Compliant
  • Centre Contact Termination: Crimp
  • Outer Contact Termination: Crimp
  • Mating Cycles: 100
  • Contact Retention: 27N min
  • Cable Retention: 100N min
  • Weight: 4.5g
  • Mating Force: 23Ncn
  • Un-Coupling Force: 23Ncn
  • Recommended Coupling Nut Torque: 60Ncm Max
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP67

Materials

  • Centre Contact: Brass
  • Outer Contact:   Brass
  • Insulator: PTFE
  • Screw Coupling Nut: Brass
  • Gasket: Silicone
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Nickel
  • Pack Size 1
