30-005-D3-AA | 30005D3AA | SMA Crimp / Crimp Plug

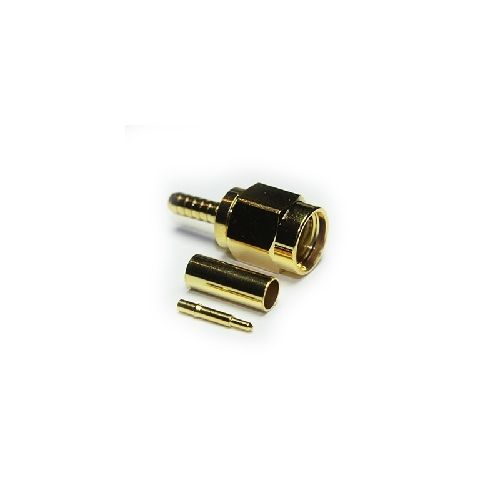

SMA straight full crimp plug. With gold plated contact and body, Suitable for use with RG178 and similar cables in group AA.
More Information
Complete Electronics Part No 30005D3AA
Manufacturers Part No. 30-005-D3-AA
Type Straight
Impedance 50 Ohm
Working Frequency Ultra HD (12GHz +)
Description

Electrical Specification

  • Impedance: 50 Ohm
  • Frequency Range: Up to 12.5GHz
  • Dielectric Withstand Voltage 750 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • Design Standard: IEC 60169-15
  • RoHS3 Compliant
  • Centre Contact Termination: Crimp
  • Outer Contact Termination: Crimp
  • Mating Cycles: 500
  • Contact Retention: 27N min
  • Cable Retention: 60N min
  • Weight: 4.8g
  • Mating Force: 23Ncm
  • Un-Coupling Force: 23Ncm
  • Recommended Coupling Nut Torque: 60Ncm Max
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP67

Materials

  • Centre Contact: Brass
  • Outer Contact:   Brass
  • Insulator: PTFE
  • Screw Coupling Nut: Brass
  • Gasket: Silicone
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Gold
  • Pack Size 1
