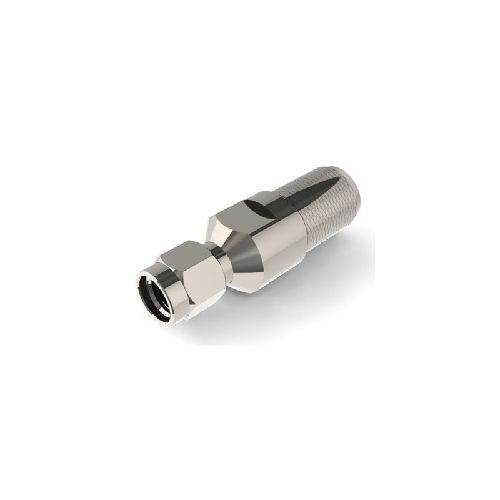

30-018-B3-DE | 30018B3DE | Easy Fit / Crimp Plug
SMA straight full crimp plug. With gold plated contact and body. Suitable for use with Times LMR®400 and similar cables in group DE.
| Complete Electronics Part No. | 30018B3DE |
|---|---|
| Manufacturers Part No. | 30-018-B3-DE |
| Type | Straight |
| Impedance | 50 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 12.5GHz
- Dielectric Withstand Voltage 750 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-15
- RoHS3 Compliant
- Centre Contact Termination: Easy Fit
- Outer Contact Termination: Crimp
- Mating Cycles: 100
- Contact Retention: 27N min
- Cable Retention: 150N min
- Weight: 11.6g
- Mating Force: 23Ncm
- Un-Coupling Force: 23Ncm
- Recommended Coupling Nut Torque: 60Ncm Max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP67
Materials
- Centre Contact: Brass
- Outer Contact: Brass
- Insulator: PTFE
- Screw Coupling Nut: Brass
- Gasket: Silicone
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Pack Size 1
