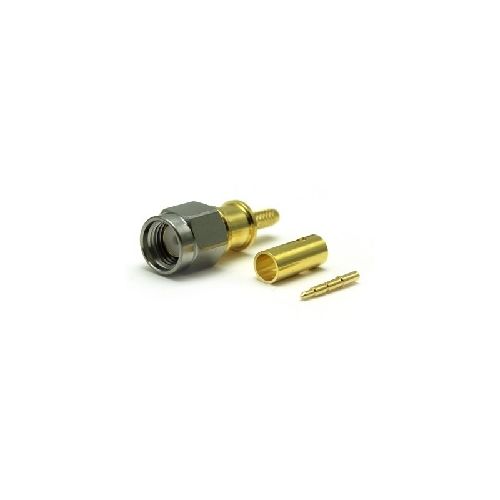

30-045-N3-AE | 30045N3AE | Crimp / Crimp Plug. (IP68)
SMA straight full crimp/crimp plug. With gold plated contact and body. Suitable for use with RD316 and similar cables in group AE.
| Complete Electronics Part No. | 30045N3AE |
|---|---|
| Manufacturers Part No. | 30-045-N3-AE |
| Type | Straight |
| Impedance | 50 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 12.5GHz
- Dielectric Withstand Voltage 750 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-15
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 500
- Contact Retention: 27N min
- Cable Retention: 150N min
- Weight: 4.13g
- Mating Force: 23Ncm
- Un-Coupling Force: 23Ncm
- Recommended Coupling Nut Torque: 60Ncm Max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP68
Materials
- Centre Contact: Brass
- Outer Contact: Stainless Steel
- Insulator: PTFE
- Screw Coupling Nut: Stainless Steel - Passivated
- Gasket: Silicone
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Pack Size 1
