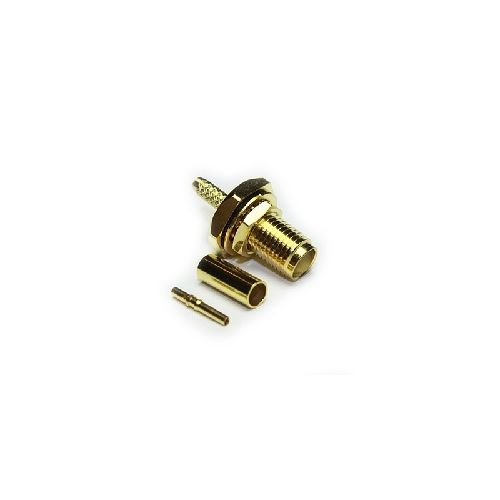

30-254-D3-AD | 30254D3AD | SMA Bulkhead Crimp / Crimp Jack
SMA bulkhead mount solder clamp jack, rear mounted with a single flat on the body. Suitable for RG174 and similar cables in group AD.
| Complete Electronics Part No. | 30254D3AD |
|---|---|
| Manufacturers Part No. | 30-254-D3-AD |
| Type | Panel / Bulkhead Mount |
| Impedance | 50 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 12.5GHz
- Dielectric Withstand Voltage 750 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-15
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 100
- Contact Retention: 27N min
- Cable Retention: 100N min
- Weight: 4.9g
- Mating Force: 23Ncn
- Un-Coupling Force: 23Ncn
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP67
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Pack Size 1
