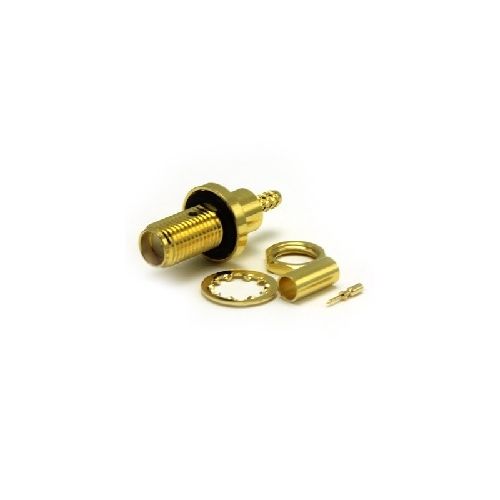

30-290-D10-AD | 30290D10AD | SMA Bulkhead Crimp / Crimp Jack
SMA 50 ohm bulkhead rear mount full crimp jack IP68 Sealed and tested to 10m unmated, Suitable for cables in group AD.
| Complete Electronics Part No. | 30290D10AD |
|---|---|
| Manufacturers Part No. | 30-290-D10-AD |
| Type | Panel / Bulkhead Mount |
| Impedance | 50 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 12GHz
- Dielectric Withstand Voltage 500 Veff
- Insulation Resistance 1000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-10
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 500
- Contact Retention: 10N min
- Cable Retention: 100N min
- Weight: 3.21g
- Mating Force: 62Ncn
- Un-Coupling Force: 62Ncn
- Operating Temperature: -55 to +155°C
- IP Rating (Unmated): IP68 10m x 1 Hours ( Tested to 50m )
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Pack Size 1
