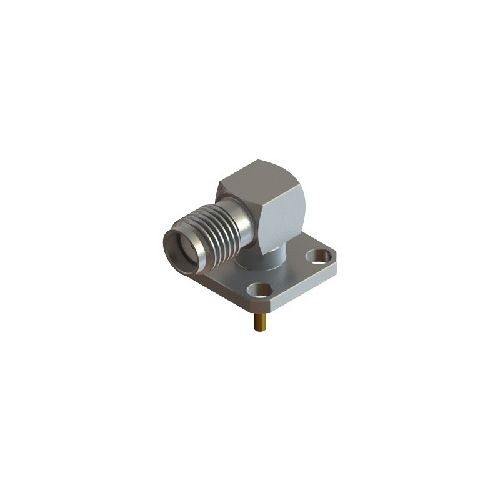

30-373-H3-2.8 | 30373H328 | SMA R/A Flanged Solder Jack
SMA Stainless Steel Right Angle 1/2" Square 4 hole flange mount jack. With a 1.27mm Diameter Solder Post Contact With 2.8 mm Extended Dieletric
| Complete Electronics Part No. | 30373H328 |
|---|---|
| Manufacturers Part No. | 30-373-H3-2.8 |
| Type | Panel / Bulkhead Mount |
| Impedance | 50 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 12.5GHz
- Dielectric Withstand Voltage 750 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-15
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination:
- Mating Cycles: 500
- Contact Retention: 27N min
- Weight: 4.83g
- Mating Force: 23Ncn
- Un-Coupling Force: 23Ncn
- Operating Temperature: -55 to +155°C
- IP Rating (mated): IP67
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Stainless Steel
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Passivated
- Pack Size 1
