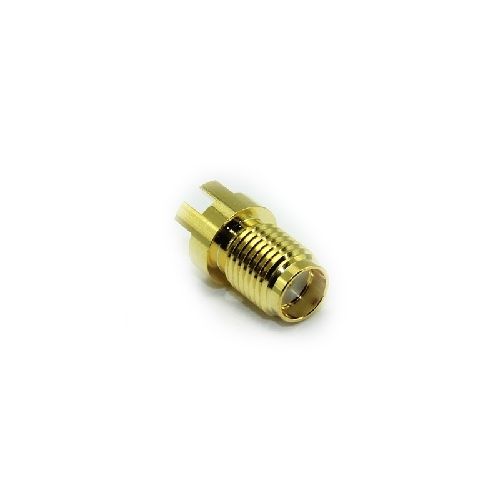

30-390-D3-1.57 | 30390D3157 | SMA End Launch Jack, 1.6mm
SMA end launch PCB jack. Suitable for soldering to a 1.6mm thick PCB, the centre line of the SMA is aligned to the PCB. Contact and body are gold plated.
| Complete Electronics Part No. | 30390D3157 |
|---|---|
| Manufacturers Part No. | 30-390-D3-1.57 |
| Type | PCB Mounting |
| Impedance | 50 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 12.5GHz
- Dielectric Withstand Voltage 750 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-15
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Solder
- Mating Cycles: 100
- Contact Retention: 27N min
- Weight: 4.2g
- Mating Force: 23Ncn
- Un-Coupling Force: 23Ncn
- Operating Temperature: -55 to +155°C
- IP Rating (mated): IP67
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Pack Size 1
