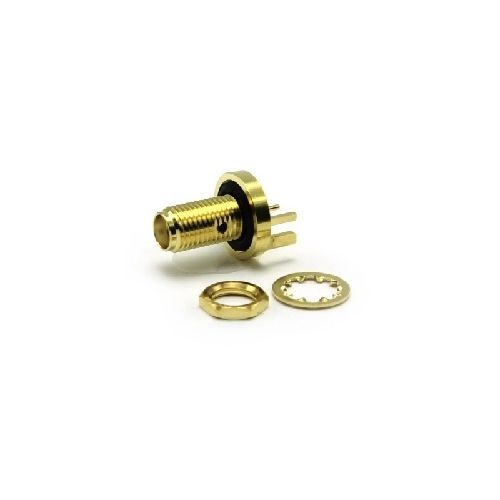

30-462-1-D3-1.6mm | 304621D316mm | SMA PCB Bulkhead Jack
SMA end launch bulkhead PCB jack IP68 Un-Mated (10m x 4 Hrs) has a Bulkhead Gasket and Epoxy Internal Seal, Suitable for soldering to a 1.57mm thick PCB
| Complete Electronics Part No. | 304621D316mm |
|---|---|
| Manufacturers Part No. | 30-462-1-D3-1.6mm |
| Type | PCB Mounting |
| Impedance | 50 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 18GHz
- Dielectric Withstand Voltage 750 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-15
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Solder
- Mating Cycles: 500
- Contact Retention: 27N min
- Max Panel Thickness: 3.2mm
- Weight: 4.22g
- Mating Force: 23Ncn
- Un-Coupling Force: 23Ncn
- Operating Temperature: -55 to +155°C
- IP Rating (mated): IP68 10m x 4 Hrs
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Brass
- Insulator: PTFE
- 8mm AF Lock Nut: Brass Gold Plated
- Lock Washer: Stainless steel Gold Plated
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Gasket: Silicone
- Pack Size 1
