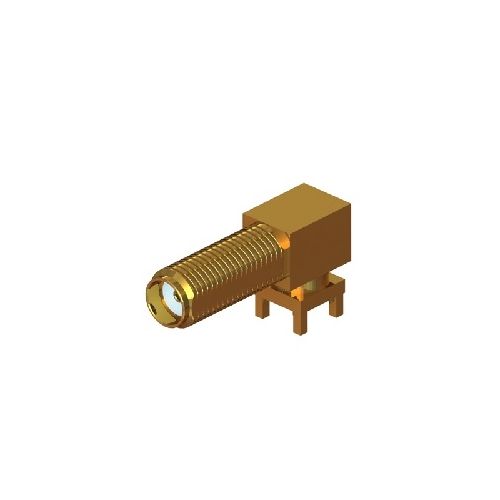

30-468-D3-2.4 | 30468D324 | SMA R/A PCB Bulkhead Jack
SMA right angle bulkhead PCB jack. Through-hole gold plated 2.4 mm long legs solder body, with gold plated solder centre contact. Without Hex Nut and Washer
| Complete Electronics Part No. | 30468D324 |
|---|---|
| Manufacturers Part No. | 30-468-D3-2.4 |
| Type | PCB Mounting |
| Impedance | 50 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 18GHz
- Dielectric Withstand Voltage 750 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-15
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Solder
- Mating Cycles: 500
- Contact Retention: 27N min
- Weight: 5.34g
- Mating Force: 23Ncn
- Un-Coupling Force: 23Ncn
- Operating Temperature: -55 to +155°C
- IP Rating (mated): IP67
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Pack Size 1
