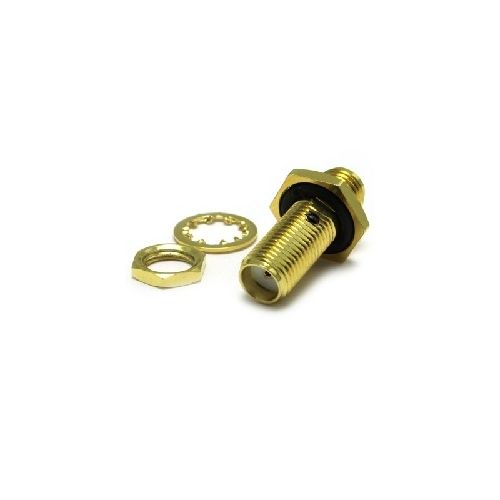

30-501-D10 | 30501D10 | SMA IP68 Bulkhead Jack to Jack Adaptor
SMA IP68 sealed to 10 meters x 4 Hours Un-Mated straight jack to jack adaptor with bulkhead fixing
| Complete Electronics Part No. | 30501D10 |
|---|---|
| Manufacturers Part No. | 30-501-D10 |
| Type | Panel / Bulkhead Mount |
| Impedance | 50 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 18GHz
- Dielectric Withstand Voltage 750 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-15
- RoHS3 Compliant
- Mating Cycles: 100
- Contact Retention: 27N min
- Max Panel Thickness: 6mm
- Weight: 4.3g
- Mating Force: 23Ncn
- Un-Coupling Force: 23Ncn
- Operating Temperature: -55 to +155°C
- IP Rating (Un-Mated): IP68 @ 10 meters x 4 Hours
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Pack Size 1
