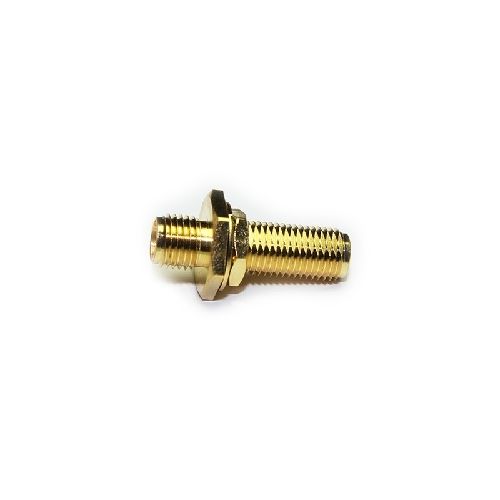

30-501-D3 | 30501D3 | SMA Bulkhead Jack to Jack Adaptor
SMA straight jack to jack bulkhead adaptor with gold plated body and centre contact.
| Complete Electronics Part No. | 30501D3 |
|---|---|
| Manufacturers Part No. | 30-501-D3 |
| Type | Panel / Bulkhead Mount |
| Impedance | 50 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 12.5GHz
- Dielectric Withstand Voltage 750 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-15
- RoHS3 Compliant
- Mating Cycles: 100
- Contact Retention: 27N min
- Weight: 4.7g
- Mating Force: 23Ncn
- Un-Coupling Force: 23Ncn
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP67
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Pack Size 1
