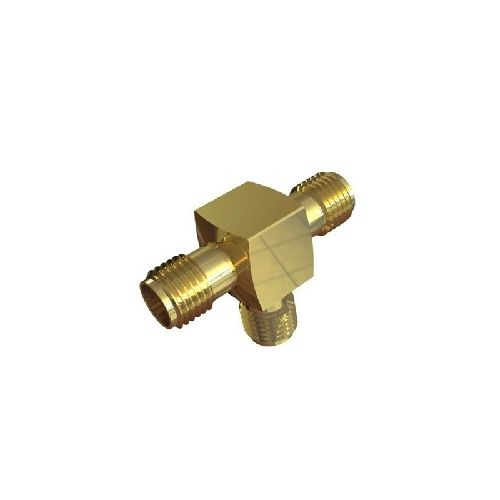

30-522-D3 | 30522D3 | SMA 'T' Jack / Jack / Jack Adaptor

SMA "T" adaptor with 3 jack connections. Body and centre contact are gold plated.
More Information
Complete Electronics Part No. 30522D3
Manufacturers Part No. 30-522-D3
Type T Adaptor
Impedance 50 Ohm
Working Frequency Ultra HD (12GHz +)
Description

Electrical Specification

  • Impedance: 50 Ohm
  • Frequency Range: Up to 12.5GHz
  • Dielectric Withstand Voltage 750 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • Design Standard: IEC 60169-15
  • RoHS3 Compliant
  • Mating Cycles: 100
  • Contact Retention: 27N min
  • Weight: 6.35g
  • Mating Force: 23Ncn
  • Un-Coupling Force: 23Ncn
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP65

Materials

  • Centre Contact: Phosphor Bronze
  • Outer Contact:   Brass
  • Insulator: PTFE
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Gold
  • Pack Size 1
